326F LN Caterpillar excavator specs & Dimensions (2017 - 2026)

Caterpillar 326F LN is a Crawler Excavator manufactured since 2017. It has a weight of 25.66 tons and a track width of 600 mm. The…

Caterpillar 326F LN is a Crawler Excavator manufactured since 2017. It has a weight of 25.66 tons and a track width of 600 mm. The transport dimensions are 10.1 meters in length, 2.99 meters in width, and 3.41 meters in height. The machine features a tear-out force of 166 kN, a dredging depth of 6.36 meters, and a maximum horizontal reach of 9.69 meters. The bucket width is 1.2 meters with a capacity of 1.33 cubic meters. Special equipment includes air conditioning, cabin adjustment, quick hitch hydraulic, and track adjustment.

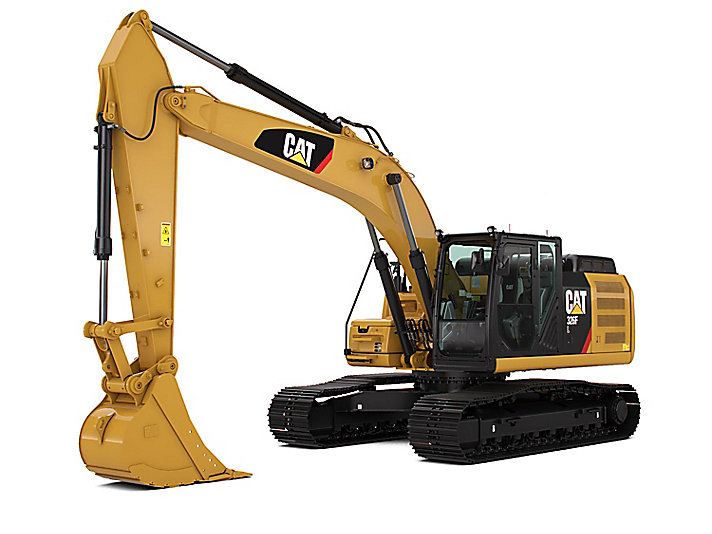

Crawler Excavators Caterpillar 326F LN

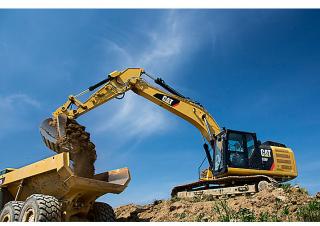

Crawler Excavators Caterpillar 326F LN
Crawler Excavators Caterpillar 326F LN
Crawler Excavators Caterpillar 326F LN
Crawler Excavators Caterpillar 326F LN
Crawler Excavators Caterpillar 326F LN

Technical specs - 326F LN Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.66 t
Transport length
10.1 m
Transport width
2.99 m
Transport height
3.41 m
Bucket capacity
1.33 m³
Track width
600 mm
Boom
VA
Max. Reach horizontal
9.69 m
Dredging depth
6.36 m
Tear-out force
166 kN
Bucket width
1.2 m
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
152 kW
Displacement
7 l
Cylinder bore x stroke
105x135 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 326F LN FAQ

When was the Caterpillar 326F LN manufactured?

The Caterpillar 326F LN was first produced in 2017.

How much does the Caterpillar 326F LN weigh?

The Caterpillar 326F LN weighs 25.66 tons.

What are the transport dimensions of the Caterpillar 326F LN?

The Caterpillar 326F LN has a transport length of 10.1 meters, a transport width of 2.99 meters, and a transport height of 3.41 meters.

What is the fuel consumption of the Caterpillar 326F LN crawler excavator?

The Caterpillar 326F LN has a fuel consumption range of 12 to 17 liters per hour, with an average consumption of 14.5 liters per hour.

What is the track width of the Caterpillar 326F LN's undercarriage?

The Caterpillar 326F LN has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 326F LN?

The Caterpillar 326F LN has an adjustable boom, a dredging depth of 6.36 meters, and a maximum horizontal reach of 9.69 meters.

What is the tear-out force of the Caterpillar 326F LN?

The Caterpillar 326F LN has a tear-out force of 166 kN.

What are the bucket specifications of the Caterpillar 326F LN excavator?

The Caterpillar 326F LN excavator has a bucket capacity of 1.33 cubic meters and a bucket width of 1.2 meters.

How much is a Caterpillar 326F LN Crawler excavator (2017u20132025) worth?

The residual value of the Caterpillar 326F LN depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
