325F L Caterpillar excavator specs & Dimensions (2015 - 2020)

Caterpillar 325F L is a Crawler Excavator manufactured from 2015 to 2020. It has a weight of 25.63 tons and a track width of 600 m…

Caterpillar 325F L is a Crawler Excavator manufactured from 2015 to 2020. It has a weight of 25.63 tons and a track width of 600 mm. The transport dimensions are 8.92 meters in length, 2.98 meters in width, and 3.18 meters in height. The machine features a tear-out force of 150 kN, a dredging depth of 6.71 meters, and a maximum horizontal reach of 9.79 meters. The bucket width is 0.9 meters with a capacity of 0.81 cubic meters. It is equipped with air conditioning.

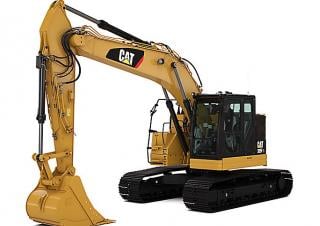

Crawler Excavators Caterpillar 325F L
Crawler Excavators Caterpillar 325F L
Crawler Excavators Caterpillar 325F L
Crawler Excavators Caterpillar 325F L
Crawler Excavators Caterpillar 325F L
Crawler Excavators Caterpillar 325F L

Technical specs - 325F L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.63 t
Transport length
8.92 m
Transport width
2.98 m
Transport height
3.18 m
Bucket capacity
0.81 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.79 m
Dredging depth
6.71 m
Tear-out force
150 kN
Bucket width
0.9 m
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
117 kW
Displacement
4.4 l
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 325F L FAQ

When was the Caterpillar 325F L manufactured?

The Caterpillar 325F L was manufactured from 2015 to 2020.

How much does the Caterpillar 325F L weigh?

The Caterpillar 325F L weighs 25.63 tons.

What are the transport dimensions of the Caterpillar 325F L crawler excavator?

The Caterpillar 325F L has a transport length of 8.92 meters, a transport width of 2.98 meters, and a transport height of 3.18 meters.

What is the fuel consumption range of the Caterpillar 325F L crawler excavator?

The fuel consumption range of the Caterpillar 325F L crawler excavator is 11 to 16 liters per hour.

What is the track width of the Caterpillar 325F L's undercarriage?

The Caterpillar 325F L has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 325F L?

The Caterpillar 325F L has a dredging depth of 6.71 meters, a maximum horizontal reach of 9.79 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Caterpillar 325F L?

The Caterpillar 325F L has a tear-out force of 150 kN.

What are the bucket specifications of the Caterpillar 325F L excavator?

The Caterpillar 325F L excavator has a bucket capacity of 0.81 cubic meters and a bucket width of 0.9 meters.

How much is a Caterpillar 325F L Crawler excavator (2015u20132020) worth?

The residual value of the Caterpillar 325F L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
