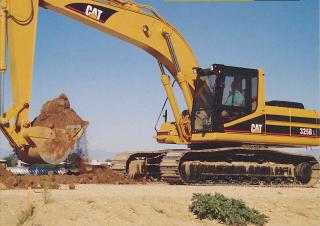

325B Caterpillar excavator specs & Dimensions (1996 - 2007)

Caterpillar 325B is a Crawler Excavator manufactured from 1996 to 2007. It has a weight of 28.12 tons and a track width of 800 mm.…

Caterpillar 325B is a Crawler Excavator manufactured from 1996 to 2007. It has a weight of 28.12 tons and a track width of 800 mm. The transport dimensions are 10.29 meters in length, 3.39 meters in width, and 3.27 meters in height. The dredging depth is 7.12 meters, and the maximum horizontal reach is 10.55 meters.

Crawler Excavators Caterpillar 325B

Technical specs - 325B Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.12 t
Transport length
10.29 m
Transport width
3.39 m
Transport height
3.27 m
Track width
800 mm
Max. Reach horizontal
10.55 m
Dredging depth
7.12 m
Engine manuf.
Caterpillar
Engine type
3116TA
Engine power
132 kW
Displacement
6.6 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 325B FAQ

When was the Caterpillar 325B manufactured?

The Caterpillar 325B was manufactured from 1996 to 2007.

How much does the Caterpillar 325B weigh?

The Caterpillar 325B weighs 28.12 tons.

What are the transport dimensions of the Caterpillar 325B crawler excavator?

The Caterpillar 325B crawler excavator has a transport length of 10.29 meters, a transport width of 3.39 meters, and a transport height of 3.27 meters.

What is the track width of the Caterpillar 325B's undercarriage?

The Caterpillar 325B has a track width of 800 mm.

What is the excavation performance of the Caterpillar 325B?

The Caterpillar 325B has a dredging depth of 7.12 meters and a maximum horizontal reach of 10.55 meters.

How much is a Caterpillar 325B Crawler excavator (1996u20132007) worth?

The residual value of the Caterpillar 325B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
