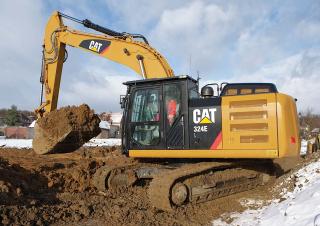

324E Caterpillar excavator specs & Dimensions (2011 - 2026)

Caterpillar 324E is a Crawler Excavator manufactured since 2011. It has a weight of 25.12 tons and a track width of 600 mm. The tr…

Caterpillar 324E is a Crawler Excavator manufactured since 2011. It has a weight of 25.12 tons and a track width of 600 mm. The transport dimensions are 10.1 meters in length, 3.19 meters in width, and 2.99 meters in height. The dredging depth is 6.81 meters, and the maximum horizontal reach is 10.11 meters.

Crawler Excavators Caterpillar 324E

Technical specs - 324E Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.12 t
Transport length
10.1 m
Transport width
3.19 m
Transport height
2.99 m
Track width
600 mm
Max. Reach horizontal
10.11 m
Dredging depth
6.81 m
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
145 kW
Displacement
7 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 324E FAQ

When was the Caterpillar 324E manufactured?

The Caterpillar 324E was first produced in 2011.

How much does the Caterpillar 324E weigh?

The Caterpillar 324E weighs 25.12 tons.

What are the transport dimensions of the Caterpillar 324E?

The Caterpillar 324E has a transport length of 10.1 meters, a transport width of 3.19 meters, and a transport height of 2.99 meters.

What is the fuel consumption of the Caterpillar 324E crawler excavator?

The Caterpillar 324E has a fuel consumption range of 12 to 24 liters per hour, with an average consumption of 18 liters per hour.

What is the track width of the Caterpillar 324E crawler excavator?

The Caterpillar 324E crawler excavator has a track width of 600 mm.

What is the excavation performance of the Caterpillar 324E?

The Caterpillar 324E has a dredging depth of 6.81 meters and a maximum horizontal reach of 10.11 meters.
