323F SA Caterpillar excavator specs & Dimensions (2017 - 2019)

Caterpillar 323F SA is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 24.43 tons and a track width of 550 …

Caterpillar 323F SA is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 24.43 tons and a track width of 550 mm. The transport dimensions are 9.57 meters in length, 2.5 meters in width, and 3.1 meters in height. The machine features a tear-out force of 126 kN, a dredging depth of 6.22 meters, and a maximum horizontal reach of 9.44 meters. The bucket width is 1.3 meters with a capacity of 1.3 cubic meters. Special equipment includes air conditioning, cabin adjustment, and track adjustment.

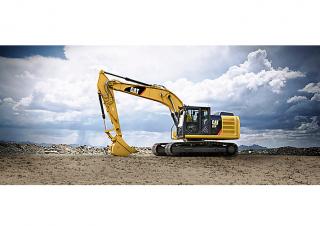

Crawler Excavators Caterpillar 323F SA
Crawler Excavators Caterpillar 323F SA
Crawler Excavators Caterpillar 323F SA
Crawler Excavators Caterpillar 323F SA
Crawler Excavators Caterpillar 323F SA
Crawler Excavators Caterpillar 323F SA

Technical specs - 323F SA Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.43 t
Transport length
9.57 m
Transport width
2.5 m
Transport height
3.1 m
Bucket capacity
1.3 m³
Track width
550 mm
Boom
MB
Max. Reach horizontal
9.44 m
Dredging depth
6.22 m
Tear-out force
126 kN
Bucket width
1.3 m
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
122 kW
Displacement
7.01 l
Max. torque
776 Nm
Emission level
Stage IV

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 323F SA FAQ

When was the Caterpillar 323F SA manufactured?

The Caterpillar 323F SA was manufactured from 2017 to 2019.

How much does the Caterpillar 323F SA weigh?

The Caterpillar 323F SA weighs 24.43 tons.

What are the transport dimensions of the Caterpillar 323F SA?

The Caterpillar 323F SA has a transport length of 9.57 meters, a transport width of 2.5 meters, and a transport height of 3.1 meters.

What is the fuel consumption range of the Caterpillar 323F SA?

The Caterpillar 323F SA has a fuel consumption range of 10 to 15 liters per hour.

What is the track width of the Caterpillar 323F SA's undercarriage?

The Caterpillar 323F SA has a track width of 550 mm.

What are the excavation performance specifications of the Caterpillar 323F SA?

The Caterpillar 323F SA has a dredging depth of 6.22 meters, a maximum horizontal reach of 9.44 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar 323F SA?

The Caterpillar 323F SA has a tear-out force of 126 kN.

What are the specifications of the primary work tool (bucket) on the Caterpillar 323F SA?

The Caterpillar 323F SA is equipped with a bucket that has a capacity of 1.3 cubic meters and a width of 1.3 meters.

How much is a Caterpillar 323F SA Crawler excavator (2017u20132019) worth?

The residual value of the Caterpillar 323F SA depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
