323D3 Caterpillar excavator specs & Dimensions (2019 - 2026)

Caterpillar 323D3 is a crawler excavator manufactured since 2019, with a weight of 22.8 tons. It features a track width of 600 mm,…

Caterpillar 323D3 is a crawler excavator manufactured since 2019, with a weight of 22.8 tons. It features a track width of 600 mm, a transport length of 9.46 meters, a transport width of 2.98 meters, and a transport height of 3.05 meters. The machine has a tear-out force of 140 kN, a dredging depth of 6.3 meters, and a maximum horizontal reach of 9.47 meters. The bucket capacity is 1.2 cubic meters.

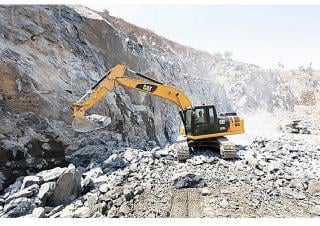

Crawler Excavators Caterpillar 323D3
Crawler Excavators Caterpillar 323D3
Crawler Excavators Caterpillar 323D3
Crawler Excavators Caterpillar 323D3
Crawler Excavators Caterpillar 323D3
Crawler Excavators Caterpillar 323D3
Crawler Excavators Caterpillar 323D3
Crawler Excavators Caterpillar 323D3

Technical specs - 323D3 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.8 t
Transport length
9.46 m
Transport width
2.98 m
Transport height
3.05 m
Bucket capacity
1.2 m³
Undercarriage
HD
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.47 m
Dredging depth
6.3 m
Tear-out force
140 kN
Engine manuf.
Caterpillar
Engine type
C7.1
Engine power
106 kW
Displacement
7.01 l
Cylinder bore x stroke
105x135 mm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 323D3 FAQ

When was the Caterpillar 323D3 manufactured?

The Caterpillar 323D3 was first produced in 2019.

How much does the Caterpillar 323D3 weigh?

The Caterpillar 323D3 weighs 22.8 tons.

What are the transport dimensions of the Caterpillar 323D3 crawler excavator?

The Caterpillar 323D3 has a transport length of 9.46 meters, a transport width of 2.98 meters, and a transport height of 3.05 meters.

What are the undercarriage specifications of the Caterpillar 323D3?

The Caterpillar 323D3 has a heavy duty undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 323D3?

The Caterpillar 323D3 has a dredging depth of 6.3 meters, a maximum horizontal reach of 9.47 meters, and features a monobloc boom.

What power rating information is available for the Caterpillar 323D3?

No power rating data is available for the Caterpillar 323D3 in the provided source data.

What is the bucket capacity of the Caterpillar 323D3 excavator?

The bucket capacity of the Caterpillar 323D3 excavator is 1.2 cubic meters.
