320E L Caterpillar excavator specs & Dimensions (2012 - 2018)

Model rating
8,00 / 10

Caterpillar 320E L is a Crawler Excavator manufactured from 2012 to 2018, with a weight of 21.6 t. It features a track width of 60…

Caterpillar 320E L is a Crawler Excavator manufactured from 2012 to 2018, with a weight of 21.6 t. It features a track width of 600 mm, a transport length of 9.54 m, a transport width of 2.98 m, and a transport height of 3.152 m. The bucket width is 1 m, and it includes special equipment such as cabin adjustment and track adjustment.

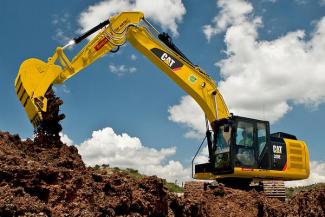

Crawler Excavators Caterpillar 320E L
Crawler Excavators Caterpillar 320E L
Crawler Excavators Caterpillar 320E L
Crawler Excavators Caterpillar 320E L
Crawler Excavators Caterpillar 320E L
Crawler Excavators Caterpillar 320E L
Crawler Excavators Caterpillar 320E L
Crawler Excavators Caterpillar 320E L
Crawler Excavators Caterpillar 320E L
Crawler Excavators Caterpillar 320E L

Technical specs - 320E L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.6 t
Transport length
9.54 m
Transport width
2.98 m
Transport height
3.152 m
Bucket capacity
0.81 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.86 m
Dredging depth
6.72 m
Tear-out force
106.7 kN
Bucket width
1 m
Engine manuf.
Caterpillar
Engine type
C6.6 Acert
Engine power
112 kW
Displacement
6.6 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 320E L FAQ

When was the Caterpillar 320E L manufactured?

The Caterpillar 320E L was manufactured from 2012 to 2018.

How much does the Caterpillar 320E L weigh?

The Caterpillar 320E L weighs 21.6 tons.

What are the transport dimensions of the Caterpillar 320E L crawler excavator?

The Caterpillar 320E L crawler excavator has a transport length of 9.54 meters, a transport width of 2.98 meters, and a transport height of 3.15 meters.

What is the fuel consumption range of the Caterpillar 320E L crawler excavator?

The Caterpillar 320E L crawler excavator has a fuel consumption range of 10 to 19 liters per hour.

What is the undercarriage track width of the Caterpillar 320E L?

The Caterpillar 320E L has a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 320E L?

The Caterpillar 320E L has a dredging depth of 6.72 meters, a maximum horizontal reach of 9.86 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 320E L?

The Caterpillar 320E L has a tear-out force of 106.7 kN.

What are the bucket specifications of the Caterpillar 320E L excavator?

The Caterpillar 320E L excavator has a bucket capacity of 0.81 cubic meters and a bucket width of 1 meter.

How much is a Caterpillar 320E L Crawler excavator (2012u20132018) worth?

The residual value of the Caterpillar 320E L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
