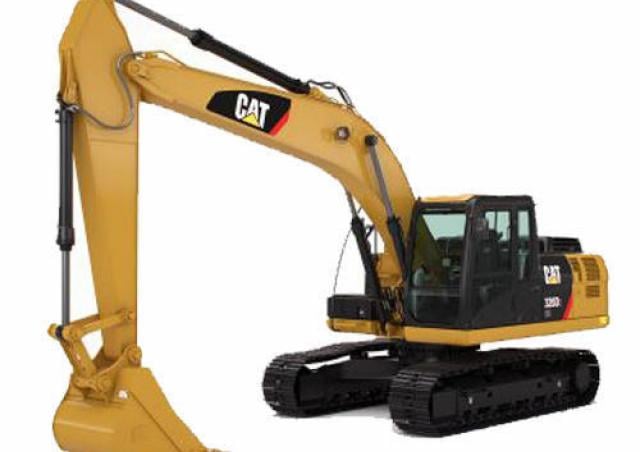

320D2 Caterpillar excavator specs & Dimensions (2017 - 2019)

Caterpillar 320D2 is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 21.2 tons and a track width of 790 mm.…

Caterpillar 320D2 is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 21.2 tons and a track width of 790 mm. The transport dimensions are 9.46 meters in length, 2.99 meters in width, and 3.05 meters in height. The machine features a tear-out force of 140 kN, a dredging depth of 6.3 meters, and a maximum horizontal reach of 9.47 meters. The bucket width is 1.35 meters with a capacity of 1.4 cubic meters.

Crawler Excavators Caterpillar 320D2

Technical specs - 320D2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.2 t
Transport length
9.46 m
Transport width
2.99 m
Transport height
3.05 m
Bucket capacity
1.4 m³
Undercarriage
SL
Track width
790 mm
Boom
MB
Max. Reach horizontal
9.47 m
Dredging depth
6.3 m
Tear-out force
140 kN
Bucket width
1.35 m
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
106 kW
Displacement
7 l
Cylinder bore x stroke
105x135 mm
Emission level
Tier 2 / EU II

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 320D2 FAQ

When was the Caterpillar 320D2 manufactured?

The Caterpillar 320D2 was manufactured from 2017 to 2019.

How much does the Caterpillar 320D2 weigh?

The Caterpillar 320D2 weighs 21.2 tons.

What are the transport dimensions of the Caterpillar 320D2 crawler excavator?

The Caterpillar 320D2 has a transport length of 9.46 meters, a transport width of 2.99 meters, and a transport height of 3.05 meters.

What is the fuel consumption range of the Caterpillar 320D2?

The Caterpillar 320D2 has a fuel consumption range of 11 to 22 liters per hour.

What are the undercarriage specifications of the Caterpillar 320D2?

The Caterpillar 320D2 has a standard undercarriage with a track width of 790 mm.

What are the excavation performance specifications of the Caterpillar 320D2?

The Caterpillar 320D2 has a dredging depth of 6.3 meters, a maximum horizontal reach of 9.47 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Caterpillar 320D2?

The Caterpillar 320D2 has a tear-out force of 140 kN.

What are the bucket specifications of the Caterpillar 320D2 excavator?

The Caterpillar 320D2 excavator has a bucket capacity of 1.4 cubic meters and a bucket width of 1.35 meters.

How much is a Caterpillar 320D2 Crawler excavator (2017u20132019) worth?

The residual value of the Caterpillar 320D2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
