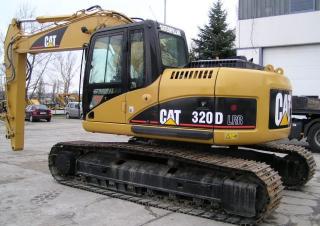

320D LRR Caterpillar excavator specs & Dimensions (2011 - 2015)

Caterpillar 320D LRR is a Crawler Excavator manufactured from 2011 to 2015. It has a weight of 24 tons and a track width of 600 mm…

Caterpillar 320D LRR is a Crawler Excavator manufactured from 2011 to 2015. It has a weight of 24 tons and a track width of 600 mm. The transport dimensions are 8.96 meters in length, 2.98 meters in width, and 2.95 meters in height. The machine features a tear-out force of 106 kN and a bucket capacity of 1 cubic meter. Special equipment includes air conditioning.

Crawler Excavators Caterpillar 320D LRR

Technical specs - 320D LRR Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24 t
Transport length
8.96 m
Transport width
2.98 m
Transport height
2.95 m
Bucket capacity
1 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.83 m
Dredging depth
6.69 m
Tear-out force
106 kN
Engine manuf.
Caterpillar
Engine type
C6.4 Acert
Engine power
103 kW
Displacement
6.4 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 320D LRR FAQ

When was the Caterpillar 320D LRR manufactured?

The Caterpillar 320D LRR was manufactured from 2011 to 2015.

How much does the Caterpillar 320D LRR weigh?

The Caterpillar 320D LRR weighs 24 tons.

What are the transport dimensions of the Caterpillar 320D LRR?

The Caterpillar 320D LRR has a transport length of 8.96 meters, a transport width of 2.98 meters, and a transport height of 2.95 meters.

What is the track width of the Caterpillar 320D LRR's undercarriage?

The Caterpillar 320D LRR has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 320D LRR?

The Caterpillar 320D LRR has a dredging depth of 6.69 meters, a maximum horizontal reach of 9.83 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 320D LRR?

The Caterpillar 320D LRR has a tear-out force of 106 kN.

What is the bucket capacity of the Caterpillar 320D LRR?

The bucket capacity of the Caterpillar 320D LRR is 1 cubic meter.

How much is a Caterpillar 320D LRR Crawler excavator (2011u20132015) worth?

The residual value of the Caterpillar 320D LRR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
