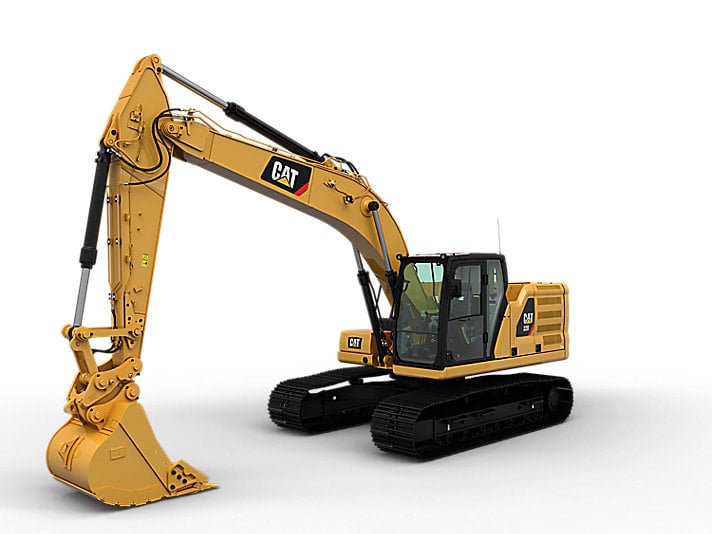

    Caterpillar 320 excavator specs (2018 - 2020)

    Rate this machine now!

    Check out detailed specifications, information and technical data for Caterpillar 320 excavator manufactured between 2018 - 2020. ... Read more

    Check out detailed specifications, information and technical data for Caterpillar 320 excavator manufactured between 2018 - 2020. Get more in-depth insight with Caterpillar 320 digger specifications. See information, like: Weight: 21.9t – Transport length: 9.53m – Transport width: 2.98m – Transport height: 2.96m – Bucket capacity: 1.19m³ – Undercarriage: LC and more.

    Technical specs - 320 Caterpillar

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Weight 21.9 t
    • Transport length 9.53 m
    • Transport width 2.98 m
    • Transport height 2.96 m
    • Bucket capacity 1.19 m³
    • Undercarriage LC
    • Track width 600 mm
    • Boom MB
    • Max. Reach horizontal 9.86 m
    • Dredging depth 6.72 m
    • Tear-out force 150 kN
    • Engine manuf. Caterpillar
    • Engine type C4.4 Acert
    • Engine power 121 kW
    • Engine power 162 HP
    • Displacement 4.4 l
    • Cylinder bore x stroke 105x127 mm
    • Emission level U.S. EPA Tier 4 Final / EU IV
    • Bucket capacity min. ###
    • Bucket capacity max. ###
    • Bucket width ###
    • Dimension lxwxh ###
    • Revolutions at max torque ###
    • Max. torque ###
    • No. of cylinders ###
    • Weight ###

    Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

    Special equipment

    • Diesel particulate filter
    • Track adjustment
    • Blade
    • Cabin adjustment
    • Overload alert
    • Material Handling Excavator
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
