320 Caterpillar excavator specs & Dimensions (2017 - 2026)

Caterpillar 320 is a Crawler Excavator manufactured since 2017. It has a weight of 22.5 tons and a track width of 790 mm. The tran…

Caterpillar 320 is a Crawler Excavator manufactured since 2017. It has a weight of 22.5 tons and a track width of 790 mm. The transport dimensions are 9.53 meters in length, 3.17 meters in width, and 2.96 meters in height. The machine features a tear-out force of 150 kN, a dredging depth of 6.72 meters, and a maximum horizontal reach of 9.86 meters. The bucket capacity is 1.19 cubic meters. Special equipment includes air conditioning and cabin adjustment.

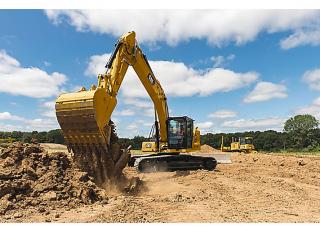

Crawler Excavators Caterpillar 320

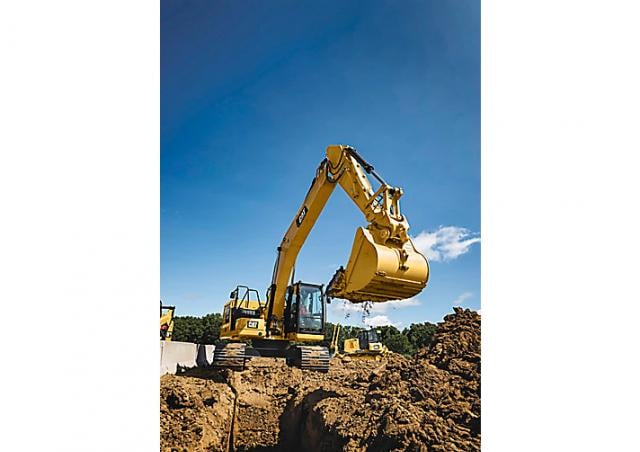

Crawler Excavators Caterpillar 320
Crawler Excavators Caterpillar 320
Crawler Excavators Caterpillar 320
Crawler Excavators Caterpillar 320
Crawler Excavators Caterpillar 320

Technical specs - 320 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.5 t
Transport length
9.53 m
Transport width
3.17 m
Transport height
2.96 m
Bucket capacity
1.19 m³
Undercarriage
LC
Track width
790 mm
Boom
MB
Max. Reach horizontal
9.86 m
Dredging depth
6.72 m
Tear-out force
150 kN
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
121 kW
Displacement
4.4 l
Cylinder bore x stroke
105x127 mm
Emission level
U.S. EPA Tier 4 Final / EU IV

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 320 FAQ

When was the Caterpillar 320 manufactured?

The Caterpillar 320 was first produced in 2017.

How much does the Caterpillar 320 weigh?

The Caterpillar 320 weighs 22.5 tons.

What are the transport dimensions of the Caterpillar 320?

The Caterpillar 320 has a transport length of 9.53 meters, a transport width of 3.17 meters, and a transport height of 2.96 meters.

What are the undercarriage specifications of the Caterpillar 320?

The Caterpillar 320 has a long undercarriage with a track width of 790 mm.

What are the excavation performance specifications of the Caterpillar 320?

The Caterpillar 320 has a dredging depth of 6.72 meters, a maximum horizontal reach of 9.86 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar 320?

The Caterpillar 320 has a tear-out force of 150 kN.

What is the bucket capacity of the Caterpillar 320 excavator?

The bucket capacity of the Caterpillar 320 excavator is 1.19 cubic meters.

How much is a Caterpillar 320 Crawler excavator (2017u20132025) worth?

The residual value of the Caterpillar 320 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
