315D L Caterpillar excavator specs & Dimensions (2008 - 2014)

Caterpillar 315D L is a crawler excavator manufactured from 2008 to 2014, with a weight of 14 tons. It features a track width of 6…

Caterpillar 315D L is a crawler excavator manufactured from 2008 to 2014, with a weight of 14 tons. It features a track width of 600 mm, a transport length of 8.525 meters, a transport width of 2.59 meters, and a transport height of 2.92 meters. The machine has a tear-out force of 95 kN and comes equipped with air conditioning and a hydraulic quick hitch.

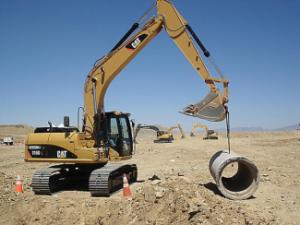

Crawler Excavators Caterpillar 315D L
Crawler Excavators Caterpillar 315D L
Crawler Excavators Caterpillar 315D L
Crawler Excavators Caterpillar 315D L

Technical specs - 315D L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14 t
Transport length
8.525 m
Transport width
2.59 m
Transport height
2.92 m
Bucket capacity
0.94 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.43 m
Dredging depth
5.72 m
Tear-out force
95 kN
Bucket width
1.2 m
Engine manuf.
Caterpillar
Engine type
C4.2 Acert
Engine power
86 kW
Displacement
4.25 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 315D L FAQ

When was the Caterpillar 315D L manufactured?

The Caterpillar 315D L was manufactured from 2008 to 2014.

How much does the Caterpillar 315D L weigh?

The Caterpillar 315D L weighs 14 tons.

What are the transport dimensions of the Caterpillar 315D L?

The Caterpillar 315D L has a transport length of 8.53 meters, a transport width of 2.59 meters, and a transport height of 2.92 meters.

What is the fuel consumption range of the Caterpillar 315D L crawler excavator?

The Caterpillar 315D L crawler excavator has a fuel consumption range of 8 to 15 liters per hour.

What is the track width of the Caterpillar 315D L's undercarriage?

The Caterpillar 315D L has a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 315D L?

The Caterpillar 315D L has a dredging depth of 5.72 meters, a maximum horizontal reach of 8.43 meters, and features a monobloc boom.

What are the power ratings of the Caterpillar 315D L?

The source data does not provide power rating information for the Caterpillar 315D L.

What are the bucket specifications of the Caterpillar 315D L excavator?

The Caterpillar 315D L excavator has a bucket capacity of 0.94 cubic meters and a bucket width of 1.2 meters.

How much is a Caterpillar 315D L Crawler excavator (2008u20132014) worth?

The residual value of the Caterpillar 315D L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
