313F GC Caterpillar excavator specs & Dimensions (2017 - 2020)

Caterpillar 313F GC is a Crawler Excavator manufactured from 2017 to 2020. It has a weight of 13.3 tons and a track width of 500 m…

Caterpillar 313F GC is a Crawler Excavator manufactured from 2017 to 2020. It has a weight of 13.3 tons and a track width of 500 mm. The transport dimensions are 7.7 meters in length, 2.49 meters in width, and 2.83 meters in height. The machine features a tear-out force of 86 kN, a dredging depth of 6.04 meters, and a maximum horizontal reach of 8.62 meters. The bucket capacity is 0.53 cubic meters. Special equipment includes air conditioning and cabin adjustment.

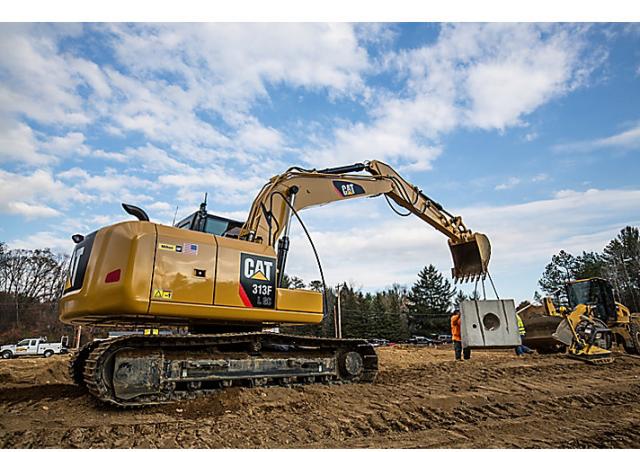

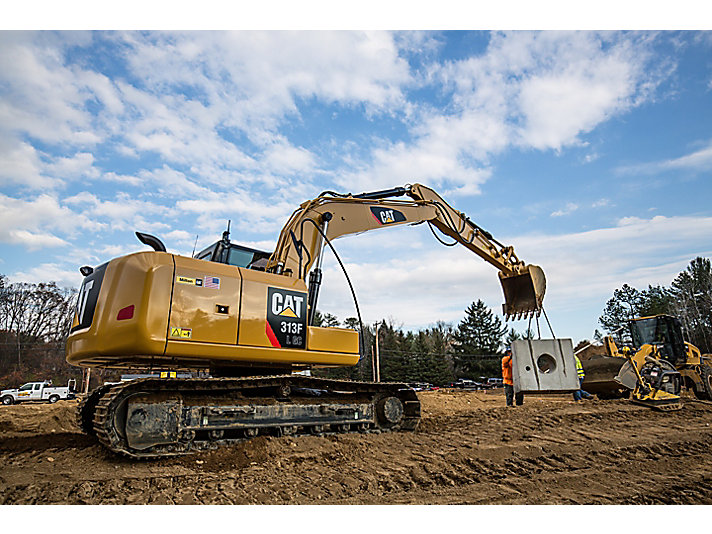

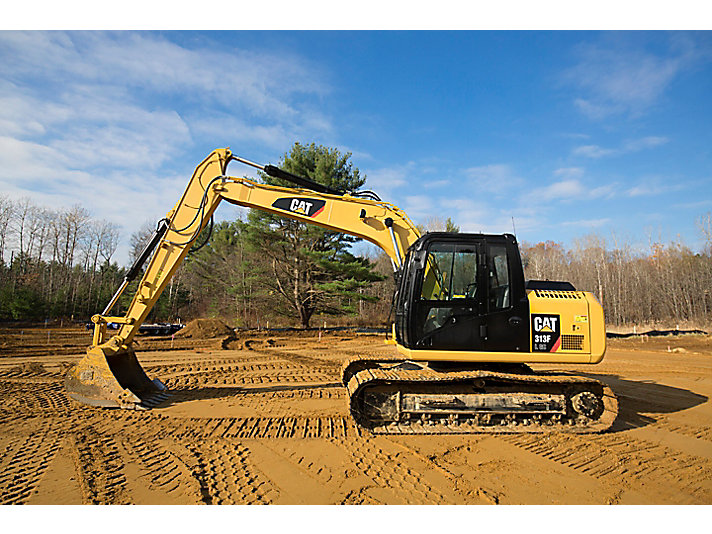

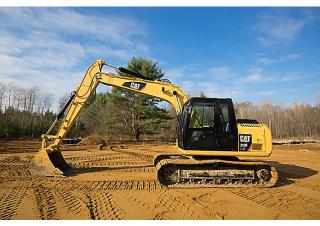

Crawler Excavators Caterpillar 313F GC
Crawler Excavators Caterpillar 313F GC
Crawler Excavators Caterpillar 313F GC
Crawler Excavators Caterpillar 313F GC
Crawler Excavators Caterpillar 313F GC
Crawler Excavators Caterpillar 313F GC

Technical specs - 313F GC Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.3 t
Transport length
7.7 m
Transport width
2.49 m
Transport height
2.83 m
Bucket capacity
0.53 m³
Undercarriage
LC
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.62 m
Dredging depth
6.04 m
Tear-out force
86 kN
Engine manuf.
Caterpillar
Engine type
C3.4B
Engine power
52 kW
Displacement
3.4 l
Revolutions at max torque
1700 rpm
Max. torque
109.9 Nm
Cylinder bore x stroke
99x110 mm
Emission level
U.S. EPA Tier 4 Final / EU IIIB

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 313F GC FAQ

When was the Caterpillar 313F GC manufactured?

The Caterpillar 313F GC was manufactured from 2017 to 2020.

How much does the Caterpillar 313F GC weigh?

The Caterpillar 313F GC weighs 13.3 tons.

What are the transport dimensions of the Caterpillar 313F GC?

The Caterpillar 313F GC has a transport length of 7.7 meters, a transport width of 2.49 meters, and a transport height of 2.83 meters.

What are the undercarriage specifications of the Caterpillar 313F GC?

The Caterpillar 313F GC has a long undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Caterpillar 313F GC?

The Caterpillar 313F GC has a dredging depth of 6.04 meters, a maximum horizontal reach of 8.62 meters, and features a monobloc boom.

What are the power ratings of the Caterpillar 313F GC?

The source data does not provide power ratings for the Caterpillar 313F GC.

What is the bucket capacity of the Caterpillar 313F GC?

The Caterpillar 313F GC has a bucket capacity of 0.53 cubic meters.

How much is a Caterpillar 313F GC Crawler excavator (2017u20132020) worth?

The residual value of the Caterpillar 313F GC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
