311 Caterpillar excavator specs & Dimensions (1994 - 1997)

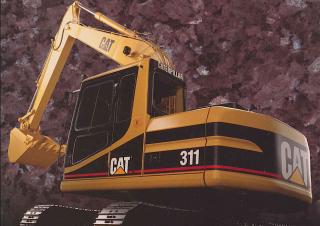

Caterpillar 311 is a Crawler Excavator manufactured from 1994 to 1997. It has a weight of 11.4 tons and a track width of 500 mm. T…

Caterpillar 311 is a Crawler Excavator manufactured from 1994 to 1997. It has a weight of 11.4 tons and a track width of 500 mm. The transport dimensions are 7.25 meters in length, 2.49 meters in width, and 2.76 meters in height. The excavator features a tear-out force of 73.55 kN, a dredging depth of 5.6 meters, and a maximum horizontal reach of 8.1 meters. The bucket width is 1.09 meters, with a bucket capacity ranging from 0.32 to 0.64 cubic meters.

Crawler Excavators Caterpillar 311

Technical specs - 311 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.4 t
Transport length
7.25 m
Transport width
2.49 m
Transport height
2.76 m
Bucket capacity min.
0.32 m³
Bucket capacity max.
0.64 m³
Track width
500 mm
Max. Reach horizontal
8.1 m
Dredging depth
5.6 m
Tear-out force
73.55 kN
Bucket width
1.09 m
Engine manuf.
Caterpillar
Engine type
3064
Engine power
59 kW
Displacement
4.25 l
No. of cylinders
4
Cylinder bore x stroke
102x130 mm

More technical details, like: bucket capacity, undercarriage, boom, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 311 FAQ

When was the Caterpillar 311 manufactured?

The Caterpillar 311 was manufactured from 1994 to 1997.

How much does the Caterpillar 311 weigh?

The Caterpillar 311 weighs 11.4 tons.

What are the transport dimensions of the Caterpillar 311?

The Caterpillar 311 has a transport length of 7.25 meters, a transport width of 2.49 meters, and a transport height of 2.76 meters.

What is the track width of the Caterpillar 311's undercarriage?

The Caterpillar 311 has a track width of 500 mm on its undercarriage.

What is the excavation performance of the Caterpillar 311?

The Caterpillar 311 has a dredging depth of 5.6 meters and a maximum horizontal reach of 8.1 meters.

What are the power ratings of the Caterpillar 311?

The source data does not provide power rating information for the Caterpillar 311.

What are the bucket specifications of the Caterpillar 311 crawler excavator?

The Caterpillar 311 has a bucket width of 1.09 meters, with a maximum capacity of 0.64 cubic meters and a minimum capacity of 0.32 cubic meters.
