309 CR Caterpillar excavator specs & Dimensions (2019 - 2026)

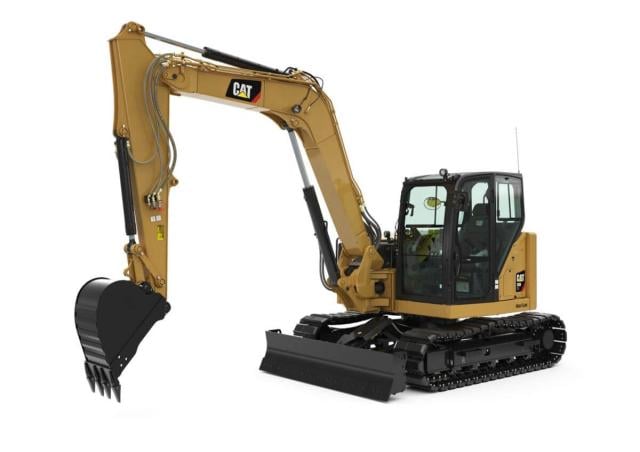

Caterpillar 309 CR is a Crawler Excavator manufactured since 2019. It has a weight of 9.4 tons and a track width of 450 mm. The tr…

Caterpillar 309 CR is a Crawler Excavator manufactured since 2019. It has a weight of 9.4 tons and a track width of 450 mm. The transport dimensions are 6.73 meters in length, 2.47 meters in width, and 2.49 meters in height. The machine features a tear-out force of 62 kN, a dredging depth of 4.06 meters, and a maximum horizontal reach of 6.93 meters. Special equipment includes air conditioning and a blade.

Crawler Excavators Caterpillar 309 CR

Technical specs - 309 CR Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.4 t
Transport length
6.73 m
Transport width
2.47 m
Transport height
2.49 m
Track width
450 mm
Max. Reach horizontal
6.93 m
Dredging depth
4.06 m
Tear-out force
62 kN
Engine manuf.
Caterpillar
Engine type
C3.3B
Engine power
52.4 kW
Displacement
3.33 l
Cylinder bore x stroke
94x120 mm
Emission level
Tier 4 f/ V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 309 CR FAQ

When was the Caterpillar 309 CR manufactured?

The Caterpillar 309 CR was first produced in 2019.

How much does the Caterpillar 309 CR weigh?

The Caterpillar 309 CR weighs 9.4 tons.

What are the transport dimensions of the Caterpillar 309 CR?

The Caterpillar 309 CR has a transport length of 6.73 meters, a transport width of 2.47 meters, and a transport height of 2.49 meters.

What is the track width of the Caterpillar 309 CR's undercarriage?

The Caterpillar 309 CR has a track width of 450 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 309 CR?

The Caterpillar 309 CR has a dredging depth of 4.06 meters and a maximum horizontal reach of 6.93 meters.

What is the tear-out force of the Caterpillar 309 CR?

The Caterpillar 309 CR has a tear-out force of 62 kN.
