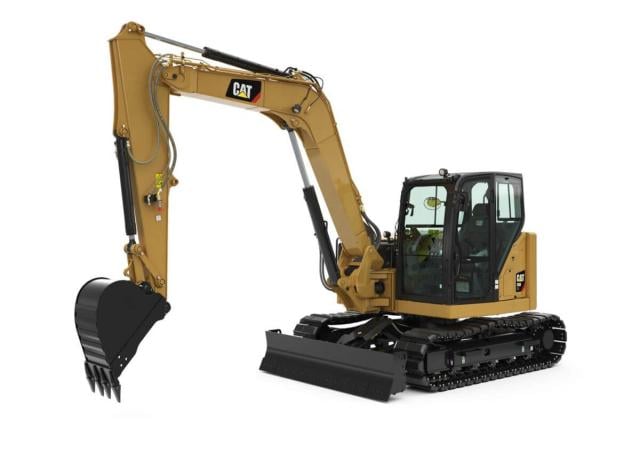

308 CR Caterpillar excavator specs & Dimensions (2019 - 2026)

Caterpillar 308 CR is a crawler excavator manufactured since 2019. It has a weight of 9.38 tons and a track width of 450 mm. The t…

Caterpillar 308 CR is a crawler excavator manufactured since 2019. It has a weight of 9.38 tons and a track width of 450 mm. The transport dimensions are 6.656 meters in length, 2.3 meters in width, and 2.522 meters in height. The machine features a tear-out force of 62 kN, a dredging depth of 4.643 meters, and a maximum horizontal reach of 7.46 meters. Special equipment includes air conditioning and a blade.

Crawler Excavators Caterpillar 308 CR

Technical specs - 308 CR Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.38 t
Transport length
6.656 m
Transport width
2.3 m
Transport height
2.522 m
Track width
450 mm
Max. Reach horizontal
7.46 m
Dredging depth
4.643 m
Tear-out force
62 kN
Engine manuf.
Caterpillar
Engine type
C3.3B
Engine power
52.4 kW
Displacement
3.33 l
Cylinder bore x stroke
94x120 mm
Emission level
Tier 4 f/ V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 308 CR FAQ

When was the Caterpillar 308 CR manufactured?

The Caterpillar 308 CR was first produced in 2019.

How much does the Caterpillar 308 CR weigh?

The Caterpillar 308 CR weighs 9.38 tons.

What are the transport dimensions of the Caterpillar 308 CR?

The Caterpillar 308 CR has a transport length of 6.66 meters, a transport width of 2.3 meters, and a transport height of 2.52 meters.

What is the track width of the Caterpillar 308 CR's undercarriage?

The Caterpillar 308 CR has a track width of 450 mm.

What are the dredging depth and maximum horizontal reach of the Caterpillar 308 CR?

The Caterpillar 308 CR has a dredging depth of 4.643 meters and a maximum horizontal reach of 7.46 meters.

What is the tear-out force of the Caterpillar 308 CR, given that no power rating data is available?

The Caterpillar 308 CR has a tear-out force of 62 kN. No power rating data is provided for this machine.
