307E Caterpillar excavator specs & Dimensions (2017 - 2026)

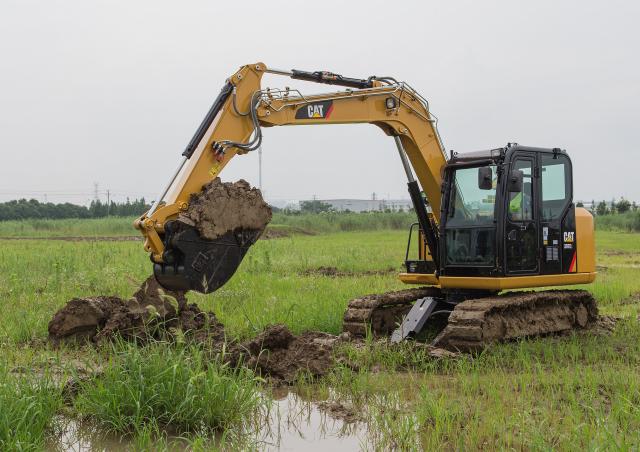

Caterpillar 307E is a Crawler Excavator manufactured since 2017. It has a weight of 7.1 tons and a track width of 450 mm. The tran…

Caterpillar 307E is a Crawler Excavator manufactured since 2017. It has a weight of 7.1 tons and a track width of 450 mm. The transport dimensions are 6.08 meters in length, 2.3 meters in width, and 2.54 meters in height. The machine features a tear-out force of 37.1 kN, a dredging depth of 4.07 meters, and a maximum horizontal reach of 6.3 meters. The bucket capacity is 0.3 cubic meters. Special equipment includes a blade and track adjustment.

Crawler Excavators Caterpillar 307E
Crawler Excavators Caterpillar 307E
Crawler Excavators Caterpillar 307E
Crawler Excavators Caterpillar 307E

Technical specs - 307E Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.1 t
Transport length
6.08 m
Transport width
2.3 m
Transport height
2.54 m
Bucket capacity
0.3 m³
Track width
450 mm
Max. Reach horizontal
6.3 m
Dredging depth
4.07 m
Tear-out force
37.1 kN
Engine manuf.
Caterpillar
Engine type
C2.6 DI Turbo
Engine power
39.7 kW
Displacement
2.6 l
Revolutions at max torque
2000 rpm
Cylinder bore x stroke
87x110 mm
Emission level
U.S. EPA Tier 2

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 307E FAQ

When was the Caterpillar 307E manufactured?

The Caterpillar 307E was first produced in 2017.

How much does the Caterpillar 307E weigh?

The Caterpillar 307E weighs 7.1 tons.

What are the transport dimensions of the Caterpillar 307E?

The Caterpillar 307E has a transport length of 6.08 meters, a transport width of 2.3 meters, and a transport height of 2.54 meters.

What is the fuel consumption of the Caterpillar 307E crawler excavator?

The Caterpillar 307E crawler excavator has a fuel consumption range of 4 to 8 liters per hour, with an average consumption of 5.8 liters per hour.

What is the track width of the Caterpillar 307E's undercarriage?

The Caterpillar 307E has a track width of 450 mm.

What are the excavation specifications of the Caterpillar 307E?

The Caterpillar 307E has a dredging depth of 4.07 meters and a maximum horizontal reach of 6.3 meters.

What is the tear-out force of the Caterpillar 307E?

The Caterpillar 307E has a tear-out force of 37.1 kN.

What is the bucket capacity of the Caterpillar 307E crawler excavator?

The bucket capacity of the Caterpillar 307E is 0.3 cubic meters.

How much is a Caterpillar 307E Crawler excavator (2017u20132025) worth?

The residual value of the Caterpillar 307E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
