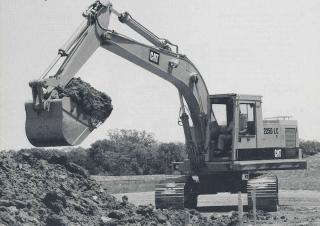

225D Caterpillar excavator specs & Dimensions (1989 - 2026)

Caterpillar 225D is a crawler excavator manufactured since 1989. It has a weight of 26.8 tons and a track width of 550 mm. The tra…

Caterpillar 225D is a crawler excavator manufactured since 1989. It has a weight of 26.8 tons and a track width of 550 mm. The transport dimensions are 9.97 meters in length, 3.12 meters in width, and 3.17 meters in height. The dredging depth is 5.95 meters, with a maximum horizontal reach of 9.23 meters. The bucket width is 0.61 meters.

Crawler Excavators Caterpillar 225D

Technical specs - 225D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.8 t
Transport length
9.97 m
Transport width
3.12 m
Transport height
3.17 m
Track width
550 mm
Max. Reach horizontal
9.23 m
Dredging depth
5.95 m
Bucket width
0.61 m
Engine manuf.
Caterpillar
Engine type
3208
Engine power
123 kW
Displacement
10.4 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 225D FAQ

When was the Caterpillar 225D manufactured?

The Caterpillar 225D was first produced in 1989.

How much does the Caterpillar 225D weigh?

The Caterpillar 225D weighs 26.8 tons.

What are the transport dimensions of the Caterpillar 225D crawler excavator?

The Caterpillar 225D has a transport length of 9.97 meters, a transport width of 3.12 meters, and a transport height of 3.17 meters.

What is the track width of the Caterpillar 225D's undercarriage?

The Caterpillar 225D has a track width of 550 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 225D?

The Caterpillar 225D has a dredging depth of 5.95 meters and a maximum horizontal reach of 9.23 meters.

What is the bucket width of the Caterpillar 225D excavator?

The Caterpillar 225D excavator has a bucket width of 0.61 meters.
