CX90D MSR Case excavator specs & Dimensions (2019 - 2026)

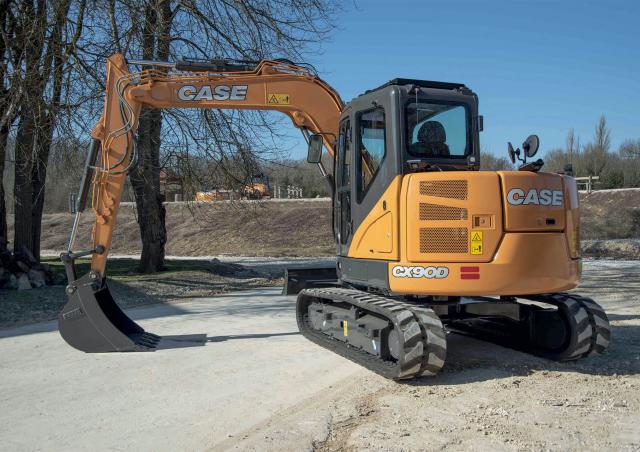

Case CX90D MSR is a crawler excavator manufactured since 2019, with a weight of 8.69 tons. It features a track width of 450 mm, a …

Case CX90D MSR is a crawler excavator manufactured since 2019, with a weight of 8.69 tons. It features a track width of 450 mm, a transport length of 6.68 meters, a transport width of 2.32 meters, and a transport height of 2.76 meters. The machine has a tear-out force of 56.9 kN, a dredging depth of 4.13 meters, and a maximum horizontal reach of 6.41 meters. The bucket width is 0.8 meters, with a bucket capacity of 0.28 cubic meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX90D MSR

Technical specs - CX90D MSR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.69 t
Transport length
6.68 m
Transport width
2.32 m
Transport height
2.76 m
Bucket capacity
0.28 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.41 m
Dredging depth
4.13 m
Tear-out force
56.9 kN
Bucket width
0.8 m
Model series
D
Engine manuf.
Isuzu
Engine type
AP-4LE2X
Engine power
41.2 kW
Displacement
2.179 l
Revolutions at max torque
1800 rpm
Max. torque
193 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX90D MSR FAQ

When was the Case CX90D MSR manufactured?

The Case CX90D MSR was first produced in 2019.

How much does the Case CX90D MSR weigh?

The Case CX90D MSR weighs 8.69 tons.

What are the transport dimensions of the Case CX90D MSR crawler excavator?

The Case CX90D MSR has a transport length of 6.68 meters, a transport width of 2.32 meters, and a transport height of 2.76 meters.

What is the track width of the Case CX90D MSR's undercarriage?

The Case CX90D MSR has a track width of 450 mm.

What are the excavation performance specifications of the Case CX90D MSR?

The Case CX90D MSR has a dredging depth of 4.13 meters, a maximum horizontal reach of 6.41 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX90D MSR?

The Case CX90D MSR has a tear-out force of 56.9 kN.

What are the specifications of the primary work tool on the Case CX90D MSR?

The primary work tool of the Case CX90D MSR has a bucket capacity of 0.28 cubic meters and a bucket width of 0.8 meters.

How much is a Case CX90D MSR Crawler excavator (2019u20132025) worth?

The residual value of the Case CX90D MSR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
