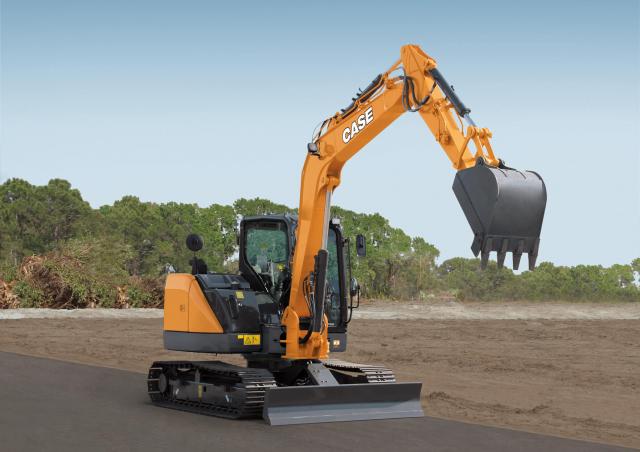

CX80C Case excavator specs & Dimensions (2021 - 2026)

Case CX80C is a Crawler Excavator manufactured since 2021. It has a weight of 8.59 tons and a track width of 450 mm. The transport…

Case CX80C is a Crawler Excavator manufactured since 2021. It has a weight of 8.59 tons and a track width of 450 mm. The transport dimensions are 6.68 meters in length, 2.32 meters in width, and 2.76 meters in height. The machine features a tear-out force of 56.9 kN, a dredging depth of 3.81 meters, and a maximum horizontal reach of 7.09 meters. The bucket width is 1.07 meters, with a bucket capacity ranging from 0.21 to 0.57 cubic meters.

Crawler Excavators Case CX80C

Technical specs - CX80C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.59 t
Transport length
6.68 m
Transport width
2.32 m
Transport height
2.76 m
Bucket capacity min.
0.21 m³
Bucket capacity max.
0.57 m³
Track width
450 mm
Max. Reach horizontal
7.09 m
Dredging depth
3.81 m
Tear-out force
56.9 kN
Bucket width
1.07 m
Model series
C
Engine manuf.
Isuzu
Engine type
AP-4LE2X
Engine power
40 kW
Displacement
2.2 l
Revolutions at max torque
1800 rpm
Max. torque
193 Nm
No. of cylinders
4
Cylinder bore x stroke
85x96 mm
Emission level
Tier 4f

More technical details, like: bucket capacity, undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX80C FAQ

When was the Case CX80C manufactured?

The Case CX80C was first produced in 2021.

How much does the Case CX80C weigh?

The Case CX80C weighs 8.59 tons.

What are the transport dimensions of the Case CX80C crawler excavator?

The Case CX80C crawler excavator has a transport length of 6.68 meters, a transport width of 2.32 meters, and a transport height of 2.76 meters.

What is the track width of the Case CX80C's undercarriage?

The Case CX80C has a track width of 450 mm.

What are the excavation performance specifications of the Case CX80C?

The Case CX80C has a dredging depth of 3.81 meters and a maximum horizontal reach of 7.09 meters.

What is the power rating of the Case CX80C?

The source data does not provide power rating information for the Case CX80C.

What are the bucket specifications of the Case CX80C crawler excavator?

The Case CX80C crawler excavator has a bucket width of 1.07 meters, with a maximum capacity of 0.57 cubic meters and a minimum capacity of 0.21 cubic meters.
