CX260E Case excavator specs & Dimensions (2023 - 2026)

Weight: 25.8t – Transport length: 10m – Transport width: 3.39m – Transport height: 3.38m – Bucket capacity: 1.1m³ – Bucket capacit…

Weight: 25.8t – Transport length: 10m – Transport width: 3.39m – Transport height: 3.38m – Bucket capacity: 1.1m³ – Bucket capacity min.: 1.1m³

Check out detailed specifications, information and technical data for Case CX260E excavator manufactured between 2023 - 2026. Get more in-depth insight with Case CX260E digger specifications. See information, like: Weight: 25.8t – Transport length: 10m – Transport width: 3.39m – Transport height: 3.38m – Bucket capacity: 1.1m³ – Bucket capacity min.: 1.1m³ and more.

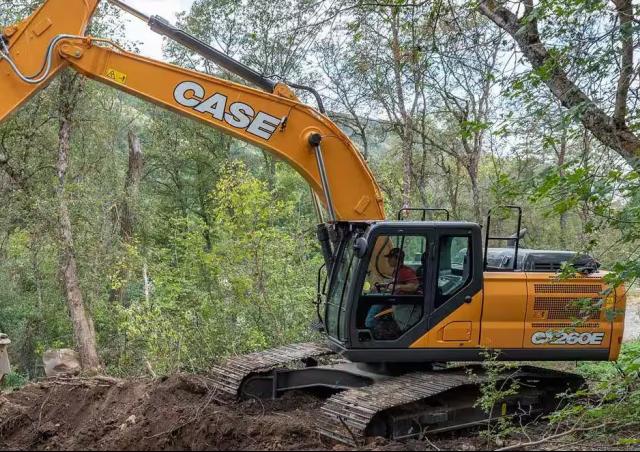

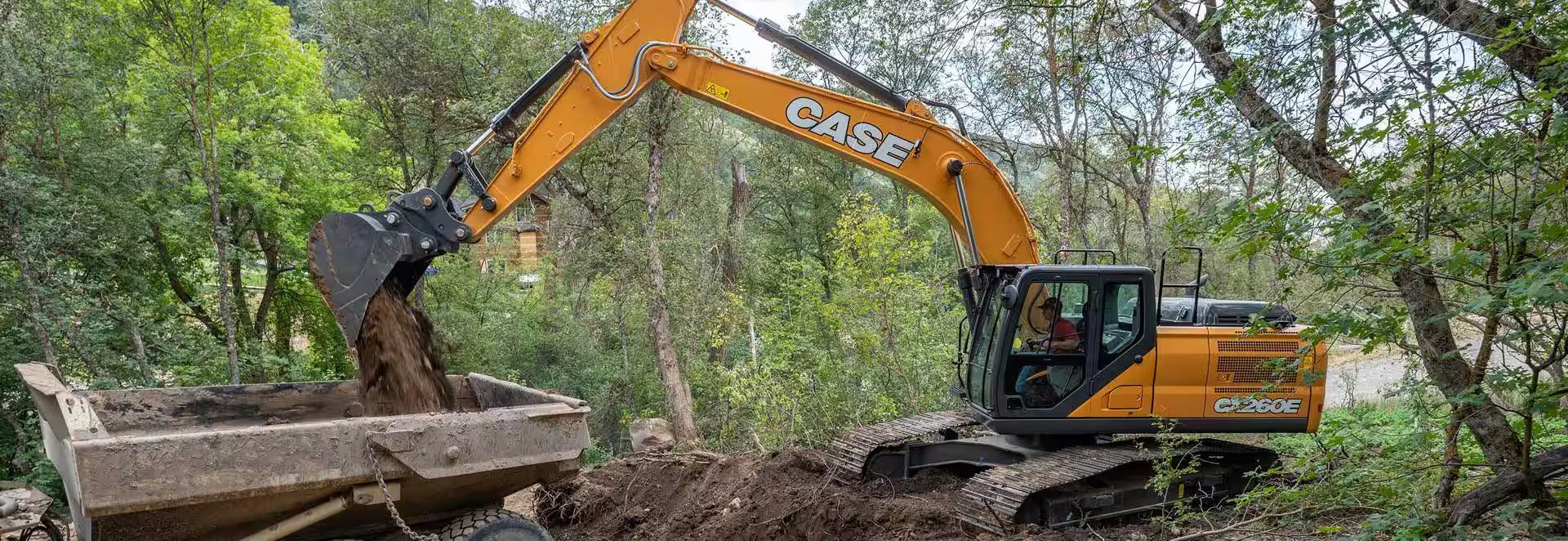

Crawler Excavators Case CX260E

Technical specs - CX260E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.8 t
Transport length
10 m
Transport width
3.39 m
Transport height
3.38 m
Bucket capacity
1.1 m³
Bucket capacity min.
1.1 m³
Track width
800 mm
Max. Reach horizontal
10.62 m
Dredging depth
7.42 m
Tear-out force
200 kN
Model series
CX
Engine manuf.
FPT
Engine type
NEF6
Engine power
138 kW
Displacement
6.728 l
Revolutions at max torque
1800 rpm
Max. torque
659 Nm
No. of cylinders
6
Cylinder bore x stroke
104x132 mm
Emission level
Tier 4 Final/Stage V

More technical details, like: bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX260E FAQ

When was the Case CX260E manufactured?

The Case CX260E was first produced in 2023.

How much does the Case CX260E weigh?

The Case CX260E weighs 25.8 tons.

What are the transport dimensions of the Case CX260E crawler excavator?

The Case CX260E has a transport length of 10 meters, a transport width of 3.39 meters, and a transport height of 3.38 meters.

What is the track width of the Case CX260E crawler excavator?

The Case CX260E crawler excavator has a track width of 800 mm.

What are the excavation performance specifications of the Case CX260E?

The Case CX260E has a dredging depth of 7.42 meters and a maximum horizontal reach of 10.62 meters.

What power ratings are available for the Case CX260E?

The source data does not provide power ratings for the Case CX260E.

What is the bucket capacity of the Case CX260E's primary work tool?

The primary work tool of the Case CX260E has a bucket capacity of 1.1 cubic meters.

How much is a Case CX260E Crawler excavator (2023u20132025) worth?

The residual value of the Case CX260E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
