CX250D LR Case excavator specs & Dimensions (2015 - 2020)

Case CX250D LR is a crawler excavator manufactured from 2015 to 2023. It has a weight of 23.6 tons and a track width of 800 mm. Th…

Case CX250D LR is a crawler excavator manufactured from 2015 to 2023. It has a weight of 23.6 tons and a track width of 800 mm. The transport dimensions are 12.52 meters in length, 3.19 meters in width, and 3.28 meters in height. The machine features a tear-out force of 65 kN, a dredging depth of 12.01 meters, and a maximum horizontal reach of 15.49 meters. The bucket capacity is 0.37 cubic meters. Special equipment includes air conditioning, an overload alert, and a hydraulic quick hitch.

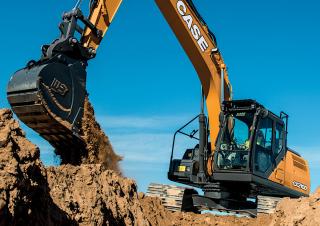

Crawler Excavators Case CX250D LR
Crawler Excavators Case CX250D LR
Crawler Excavators Case CX250D LR
Crawler Excavators Case CX250D LR

Technical specs - CX250D LR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.6 t
Transport length
12.52 m
Transport width
3.19 m
Transport height
3.28 m
Bucket capacity
0.37 m³
Undercarriage
SL
Track width
800 mm
Boom
MB
Max. Reach horizontal
15.49 m
Dredging depth
12.01 m
Tear-out force
65 kN
Model series
D
Engine manuf.
Isuzu
Engine type
AQ 4 HK 1 X
Engine power
140 kW
Displacement
5.193 l
Revolutions at max torque
1800 rpm
Max. torque
676 Nm
No. of cylinders
4
Cylinder bore x stroke
115x125 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX250D LR FAQ

When was the Case CX250D LR manufactured?

The Case CX250D LR was manufactured from 2015 to 2020.

How much does the Case CX250D LR weigh?

The Case CX250D LR weighs 23.6 tons.

What are the transport dimensions of the Case CX250D LR crawler excavator?

The Case CX250D LR has a transport length of 12.52 meters, a transport width of 3.19 meters, and a transport height of 3.28 meters.

What are the undercarriage specifications of the Case CX250D LR?

The Case CX250D LR has a standard undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Case CX250D LR crawler excavator?

The Case CX250D LR crawler excavator has a dredging depth of 12.01 meters, a maximum horizontal reach of 15.49 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX250Du0000A0LR?

The Case CX250Du0000A0LR has a tear-out force of 65 kN.

What is the bucket capacity of the Case CX250D LR excavator?

The Case CX250D LR excavator has a bucket capacity of 0.37 cubic meters.

How much is a Case CX250Du00a0LR Crawler excavator (2015u20132020) worth?

The residual value of the Case CX250Du00a0LR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
