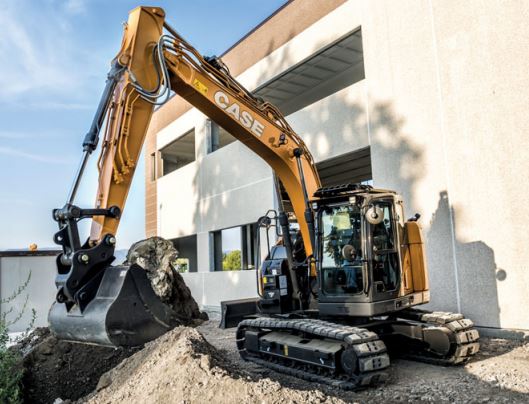

CX245D SR Case excavator specs & Dimensions (2018 - 2019)

Case CX245D SR is a Crawler Excavator manufactured from 2018 to 2019, with a weight of 27.7 tons. It features a track width of 600…

Case CX245D SR is a Crawler Excavator manufactured from 2018 to 2019, with a weight of 27.7 tons. It features a track width of 600 mm, a transport length of 9.44 meters, a transport width of 2.99 meters, and a transport height of 3.14 meters. The machine has a tear-out force of 142 kN, a dredging depth of 6.37 meters, and a maximum horizontal reach of 9.52 meters. The bucket width is 1.3 meters with a capacity of 1 cubic meter. Special equipment includes air conditioning, a blade, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX245D SR

Technical specs - CX245D SR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.7 t
Transport length
9.44 m
Transport width
2.99 m
Transport height
3.14 m
Bucket capacity
1 m³
Undercarriage
SL
Track width
600 mm
Boom
VA
Max. Reach horizontal
9.52 m
Dredging depth
6.37 m
Tear-out force
142 kN
Bucket width
1.3 m
Model series
D
Engine manuf.
Isuzu
Engine type
AR 4HK1X
Engine power
119.3 kW
Displacement
5.2 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX245D SR FAQ

When was the Case CX245D SR manufactured?

The Case CX245D SR was manufactured from 2018 to 2019.

How much does the Case CX245D SR weigh?

The Case CX245D SR weighs 27.7 tons.

What are the transport dimensions of the Case CX245D SR crawler excavator?

The Case CX245D SR has a transport length of 9.44 meters, a transport width of 2.99 meters, and a transport height of 3.14 meters.

What are the undercarriage specifications of the Case CX245D SR?

The Case CX245D SR has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX245D SR?

The Case CX245D SR has a dredging depth of 6.37 meters, a maximum horizontal reach of 9.52 meters, and features an adjustable boom.

What is the power rating of the Case CX245D SR?

The power rating of the Case CX245D SR is not provided in the available data.

What are the bucket specifications of the Case CX245D SR excavator?

The Case CX245D SR has a bucket capacity of 1 cubic meter and a bucket width of 1.3 meters.

How much is a Case CX245D SR Crawler excavator (2018u20132019) worth?

The residual value of the Case CX245D SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
