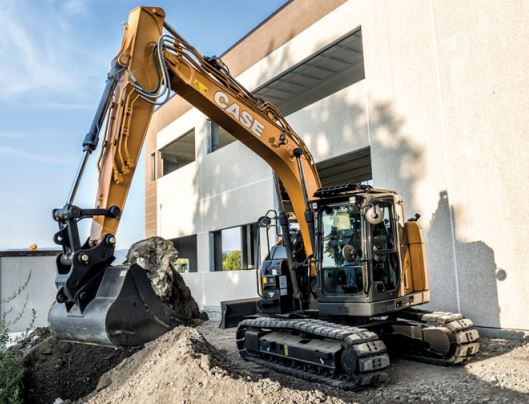

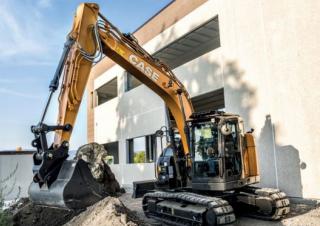

CX245D Case excavator specs & Dimensions (2018 - 2019)

Case CX245D is a Crawler Excavator manufactured from 2018 to 2019. It has a weight of 26.1 tons and a track width of 600 mm. The t…

Case CX245D is a Crawler Excavator manufactured from 2018 to 2019. It has a weight of 26.1 tons and a track width of 600 mm. The transport dimensions are 8.83 meters in length, 2.99 meters in width, and 3.14 meters in height. The excavator features a tear-out force of 142 kN, a dredging depth of 6.37 meters, and a maximum horizontal reach of 9.52 meters. The bucket width is 1.3 meters with a capacity of 1 cubic meter. Special equipment includes air conditioning, overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX245D

Technical specs - CX245D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.1 t
Transport length
8.83 m
Transport width
2.99 m
Transport height
3.14 m
Bucket capacity
1 m³
Undercarriage
SL
Track width
600 mm
Boom
VA
Max. Reach horizontal
9.52 m
Dredging depth
6.37 m
Tear-out force
142 kN
Bucket width
1.3 m
Model series
D
Engine manuf.
Isuzu
Engine type
AR 4HK1X
Engine power
119.3 kW
Displacement
5.2 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX245D FAQ

When was the Case CX245D manufactured?

The Case CX245D was manufactured from 2018 to 2019.

How much does the Case CX245D crawler excavator weigh?

The Case CX245D crawler excavator weighs 26.1 tons.

What are the transport dimensions of the Case CX245D crawler excavator?

The Case CX245D has a transport length of 8.83 meters, a transport width of 2.99 meters, and a transport height of 3.14 meters.

What are the undercarriage specifications of the Case CX245D?

The Case CX245D has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX245D crawler excavator?

The Case CX245D crawler excavator has an adjustable boom, a maximum horizontal reach of 9.52 meters, and a dredging depth of 6.37 meters.

What power rating information is available for the Case CX245D?

The source data does not provide power rating information for the Case CX245D.

What are the specifications of the primary work tool bucket on the Case CX245D?

The primary work tool bucket of the Case CX245D has a capacity of 1 cubic meter and a width of 1.3 meters.

How much is a Case CX245D Crawler excavator (2018u20132019) worth?

The residual value of the Case CX245D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
