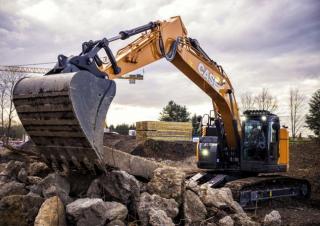

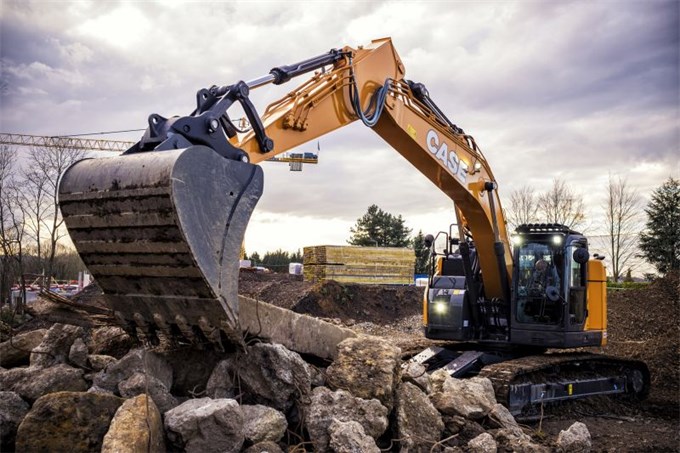

CX230D  Case excavator specs & Dimensions (2017 - 2018)

Case CX230D is a Crawler Excavator manufactured from 2017 to 2018, with a weight of 22.6 tons. It features a track width of 550 mm…

Case CX230D is a Crawler Excavator manufactured from 2017 to 2018, with a weight of 22.6 tons. It features a track width of 550 mm, a transport length of 9.57 meters, a transport width of 2.54 meters, and a transport height of 3.34 meters. The excavator has a tear-out force of 142 kN, a dredging depth of 6.05 meters, and a maximum horizontal reach of 9.23 meters. The bucket width is 1.1 meters, with a bucket capacity of 1 cubic meter. Special equipment includes air conditioning, overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX230D

Technical specs - CX230D  Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.6 t
Transport length
9.57 m
Transport width
2.54 m
Transport height
3.34 m
Bucket capacity
1 m³
Track width
550 mm
Boom
MB
Max. Reach horizontal
9.23 m
Dredging depth
6.05 m
Tear-out force
142 kN
Bucket width
1.1 m
Model series
D
Engine manuf.
Isuzu
Engine type
AR 4HK1X
Engine power
119.3 kW
Displacement
5.2 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX230D  FAQ

When was the Case CX230D manufactured?

The Case CX230D was manufactured from 2017 to 2018.

How much does the Case CX230D crawler excavator weigh?

The Case CX230D crawler excavator weighs 22.6 tons.

What are the transport dimensions of the Case CX230D crawler excavator?

The Case CX230D crawler excavator has a transport length of 9.57 meters, a transport width of 2.54 meters, and a transport height of 3.34 meters.

What is the track width of the Case CX230D's undercarriage?

The Case CX230D has a track width of 550 mm.

What are the excavation performance specifications of the Case CX230D?

The Case CX230D has a dredging depth of 6.05 meters, a maximum horizontal reach of 9.23 meters, and features a monobloc boom.

What is the tear-out force of the Case CX230D?

The Case CX230D has a tear-out force of 142 kN.

What are the specifications of the primary work tool on the Case CX230D?

The primary work tool of the Case CX230D has a bucket capacity of 1 cubic meter and a bucket width of 1.1 meters.
