CX225 Case excavator specs & Dimensions (2007 - 2015)

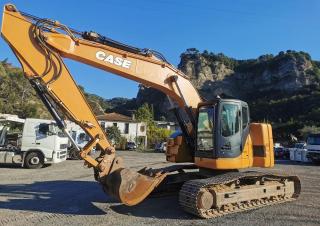

Case CX225 is a crawler excavator manufactured from 2007 to 2015. It has a weight of 24.14 tons and a track width of 800 mm. The t…

Case CX225 is a crawler excavator manufactured from 2007 to 2015. It has a weight of 24.14 tons and a track width of 800 mm. The transport dimensions are 8.85 meters in length, 3.19 meters in width, and 2.97 meters in height. The machine features a tear-out force of 130 kN, a dredging depth of 6.7 meters, and a maximum horizontal reach of 9.91 meters. The bucket width is 1.2 meters, with a capacity ranging from 0.5 to 1.17 cubic meters.

Crawler Excavators Case CX225

Technical specs - CX225 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.14 t
Transport length
8.85 m
Transport width
3.19 m
Transport height
2.97 m
Bucket capacity min.
0.5 m³
Bucket capacity max.
1.17 m³
Track width
800 mm
Max. Reach horizontal
9.91 m
Dredging depth
6.7 m
Tear-out force
130 kN
Bucket width
1.2 m
Engine manuf.
Isuzu
Engine type
Al-4HK1X
Engine power
114.4 kW
Displacement
5.19 l
Revolutions at max torque
1500 rpm
Max. torque
616 Nm
No. of cylinders
4
Cylinder bore x stroke
115x125 mm

More technical details, like: bucket capacity, undercarriage, boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX225 FAQ

When was the Case CX225 manufactured?

The Case CX225 was manufactured from 2007 to 2015.

How much does the Case CX225 crawler excavator weigh?

The Case CX225 crawler excavator weighs 24.14 tons.

What are the transport dimensions of the Case CX225 crawler excavator?

The Case CX225 has a transport length of 8.85 meters, a transport width of 3.19 meters, and a transport height of 2.97 meters.

What is the track width of the Case CX225's undercarriage?

The Case CX225 has a track width of 800 mm in its undercarriage.

What are the dredging depth and maximum horizontal reach of the Case CX225?

The Case CX225 has a dredging depth of 6.7 meters and a maximum horizontal reach of 9.91 meters.

What is the tear-out force of the Case CX225?

The Case CX225 has a tear-out force of 130 kN.

What are the specifications of the primary work tool bucket on the Case CX225?

The Case CX225's bucket has a maximum capacity of 1.17 cubic meters, a minimum capacity of 0.5 cubic meters, and a width of 1.2 meters.

How much is a Case CX225 Crawler excavator (2007u20132015) worth?

The residual value of the Case CX225 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
