CX220E Case excavator specs & Dimensions (2022 - 2026)

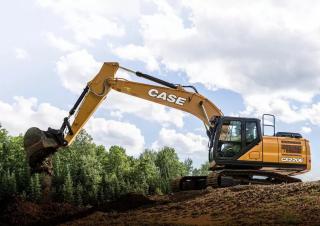

Case CX220E is a Crawler Excavator manufactured since 2022. It has a weight of 23.6 tons and a track width of 800 mm. The transpor…

Case CX220E is a Crawler Excavator manufactured since 2022. It has a weight of 23.6 tons and a track width of 800 mm. The transport dimensions are 12.58 meters in length, 3.19 meters in width, and 2.99 meters in height. The machine features a tear-out force of 188 kN, a dredging depth of 6.64 meters, and a maximum horizontal reach of 9.9 meters. It is equipped with a diesel particulate filter.

Crawler Excavators Case CX220E

Technical specs - CX220E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.6 t
Transport length
12.58 m
Transport width
3.19 m
Transport height
2.99 m
Track width
800 mm
Max. Reach horizontal
9.9 m
Dredging depth
6.64 m
Tear-out force
188 kN
Model series
E
Engine manuf.
FPT
Engine type
NEF4
Engine power
120.4 kW
Displacement
6.74 l
Max. torque
644 Nm
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX220E FAQ

When was the Case CX220E manufactured?

The Case CX220E was first produced in 2022.

How much does the Case CX220E weigh?

The Case CX220E weighs 23.6 tons.

What are the transport dimensions of the Case CX220E crawler excavator?

The Case CX220E has a transport length of 12.58 meters, a transport width of 3.19 meters, and a transport height of 2.99 meters.

What is the track width of the Case CX220E's undercarriage?

The Case CX220E has a track width of 800 mm in its undercarriage.

What are the excavation performance specifications of the Case CX220E?

The Case CX220E has a dredging depth of 6.64 meters and a maximum horizontal reach of 9.9 meters.

What is the tear-out force of the Case CX220E?

The Case CX220E has a tear-out force of 188 kN.
