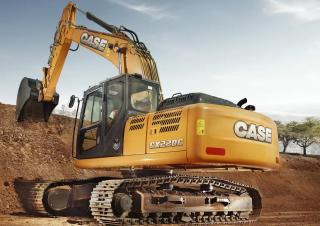

CX220C LC HD Case excavator specs & Dimensions (2022 - 2026)

Case CX220C LR HD is a crawler excavator manufactured since 2022, with a weight of 22.38 tons.

Crawler Excavators Case CX220C LC HD

Technical specs - CX220C LC HD Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.35 t
Transport length
9.43 m
Transport width
2.99 m
Transport height
2.98 m
Bucket capacity
1 m³
Track width
600 mm
Max. Reach horizontal
9.87 m
Dredging depth
6.65 m
Tear-out force
205 kN
Model series
C
Engine manuf.
FPT
Engine type
F4HE0687A*J105
Engine power
117 kW
Displacement
6.727 l
Revolutions at max torque
1800 rpm
Max. torque
622 Nm
No. of cylinders
6
Cylinder bore x stroke
104x132 mm
Emission level
Tier III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Case CX220C LC HD FAQ

When was the Case CX220C LR HD manufactured?

The Case CX220C LR HD was first produced in 2022.

How much does the Case CX220C LR HD weigh?

The Case CX220C LR HD weighs 22.38 tons.

How much is a Case CX220C LR HD Crawler excavator (2022u20132025) worth?

The residual value of the Case CX220C LR HD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
