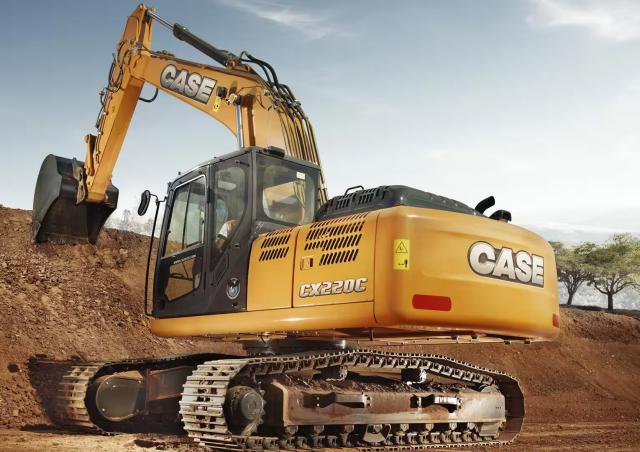

CX220C LC Case excavator specs & Dimensions (2022 - 2026)

Case CX220C LR is a Crawler Excavator manufactured since 2022, with a weight of 22.38 tons. It features a track width of 800 mm, a…

Case CX220C LR is a Crawler Excavator manufactured since 2022, with a weight of 22.38 tons. It features a track width of 800 mm, a transport length of 12.47 meters, a transport width of 3.19 meters, and a transport height of 3 meters. The excavator has a tear-out force of 65 kN, a dredging depth of 12.02 meters, and a maximum horizontal reach of 15.61 meters. The bucket capacity ranges from 0.37 m³ to 1 m³. Special equipment includes air conditioning, a blade, and a diesel particulate filter.

Crawler Excavators Case CX220C LC

Technical specs - CX220C LC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.25 t
Transport length
9.43 m
Transport width
2.99 m
Transport height
2.98 m
Bucket capacity
0.9 m³
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
9.87 m
Dredging depth
6.65 m
Tear-out force
205 kN
Model series
C
Engine manuf.
Isuzu
Engine type
GF-4HK1X
Engine power
122 kW
Displacement
5.19 l
Revolutions at max torque
1600 rpm
Max. torque
624 Nm
No. of cylinders
4
Cylinder bore x stroke
115x125 mm
Emission level
Tier III

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX220C LC FAQ

When was the Case CX220C LR manufactured?

The Case CX220C LR was first produced in 2022.

How much does the Case CX220C LR weigh?

The Case CX220C LR weighs 22.38 tons.

What are the transport dimensions of the Case CX220C LR crawler excavator?

The Case CX220C LR has a transport length of 12.47 meters, a transport width of 3.19 meters, and a transport height of 3 meters.

What is the track width of the Case CX220C LR's undercarriage?

The Case CX220C LR has a track width of 800 mm.

What are the dredging depth and maximum horizontal reach of the Case CX220C LR?

The Case CX220C LR has a dredging depth of 12.02 meters and a maximum horizontal reach of 15.61 meters.

What is the tear-out force of the Case CX220C LR?

The Case CX220C LR has a tear-out force of 65 kN.

What are the bucket capacity specifications of the Case CX220C LR crawler excavator?

The Case CX220C LR crawler excavator has a bucket capacity ranging from 0.37 to 1 cubic meter.
