CX220C LC Case excavator specs & Dimensions (2021 - 2026)

Case CX220C LC is a crawler excavator manufactured since 2021, with a weight of 22.22 tons. It features a track width of 600 mm, a…

Case CX220C LC is a crawler excavator manufactured since 2021, with a weight of 22.22 tons. It features a track width of 600 mm, a transport length of 9.43 meters, a transport width of 2.99 meters, and a transport height of 2.95 meters. The machine has a tear-out force of 152 kN, a dredging depth of 6.65 meters, and a maximum horizontal reach of 9.73 meters. The bucket capacity is 1.1 cubic meters.

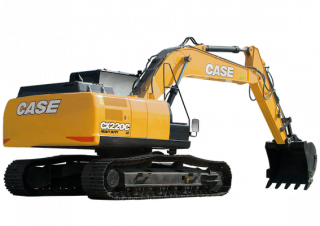

Crawler Excavators Case CX220C LC
Crawler Excavators Case CX220C LC
Crawler Excavators Case CX220C LC
Crawler Excavators Case CX220C LC
Crawler Excavators Case CX220C LC
Crawler Excavators Case CX220C LC

Technical specs - CX220C LC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.22 t
Transport length
9.43 m
Transport width
2.99 m
Transport height
2.95 m
Bucket capacity
1.1 m³
Track width
600 mm
Max. Reach horizontal
9.73 m
Dredging depth
6.65 m
Tear-out force
152 kN
Model series
C
Engine manuf.
FPT
Engine type
F4HE0687A*J105
Engine power
117 kW
Displacement
6.73 l
Revolutions at max torque
1800 rpm
Max. torque
622 Nm
No. of cylinders
6
Cylinder bore x stroke
104x132 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX220C LC FAQ

When was the Case CX220C LC manufactured?

The Case CX220C LC was first produced in 2021.

How much does the Case CX220C LC weigh?

The Case CX220C LC weighs 22.22 tons.

What are the transport dimensions of the Case CX220C LC crawler excavator?

The Case CX220C LC crawler excavator has a transport length of 9.43 meters, a transport width of 2.99 meters, and a transport height of 2.95 meters.

What is the track width of the Case CX220C LC's undercarriage?

The Case CX220C LC has a track width of 600 mm.

What are the excavation performance specifications of the Case CX220C LC?

The Case CX220C LC has a dredging depth of 6.65 meters and a maximum horizontal reach of 9.73 meters.

What power ratings are available for the Case CX220C LC?

The source data does not provide power ratings for the Case CX220C LC.

What is the bucket capacity of the Case CX220C LC excavator?

The bucket capacity of the Case CX220C LC excavator is 1.1 cubic meters.

How much is a Case CX220C LC Crawler excavator (2021u20132025) worth?

The residual value of the Case CX220C LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CX220C LC overview

Engine

High efficiency

Up to 4% more fuel efficiency due to hydraulic system control and 6% better efficiency from FPT engine. 5 energy saving controls & ECO gauge function enable the continuous monitoring of the fuel consumption.


Hydraulic and electronic system

Fast cycles

Higher breakout force. Continuous operations. Up to 10% higher digging capability. With A/H/SP working modes and Auto Power boost. The advanced hydraulic system offers higher breakout forces, improved swing speeds and greater swing torque, resulting in faster cycle times and a 5% increase in productivity. Power boost function is automatically engaged. The electronic management of speed and power lowers fuel consumption and offers considerable productivity benefits in terms of outputs.


Low total cost of ownership

Longer service intervals. Reduced downtimes. Fast, easy and safe maintenance operations. High quality components and service points accessible from the ground.


High versatility

3 power modes to match any customer need:AUTO: for normal digging, grading, lifting and precision work. Power Boost always engaged.HEAVY: for heavy operations always granting the best balance between productivity and fuel economy. Power Boost automatically engaged.SUPER POWER: extra speed and power for the most demanding jobs that require maximum productivity. Power Boost automatically engaged. Operators can store up to 10 auxiliary hydraulic flow and pressure settings to easily switch among different attachments with no need of any mechanical adjustment.


Cab

Comfort and safety

Spacious and safe cab. Low noise and vibrations. Ergonomic workstation. Real time parameters monitoring. With the newly designed cab, fully adjustable seat, joysticks and 7” LCD monitor.


Outstanding visibility

Wider glazed surface with two pieces door’s window. Improved front, top and side visibility - Openable roof window to give better visibility on top. New 7” LED cluster to constantly monitor the main machine parameters.
