CX220C Case excavator specs & Dimensions (2021 - 2026)

Case CX220C is a crawler excavator manufactured since 2021, with a weight of 21.6 tons. It features a track width of 600 mm, a tra…

Case CX220C is a crawler excavator manufactured since 2021, with a weight of 21.6 tons. It features a track width of 600 mm, a transport length of 9.43 meters, a transport width of 2.8 meters, and a transport height of 2.95 meters. The machine has a tear-out force of 152 kN, a dredging depth of 6.65 meters, and a maximum horizontal reach of 9.73 meters. The bucket capacity is 1.1 cubic meters.

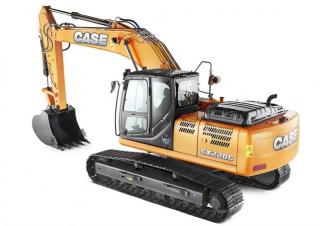

Crawler Excavators Case CX220C
Crawler Excavators Case CX220C
Crawler Excavators Case CX220C
Crawler Excavators Case CX220C

Technical specs - CX220C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.6 t
Transport length
9.43 m
Transport width
2.8 m
Transport height
2.95 m
Bucket capacity
1.1 m³
Track width
600 mm
Max. Reach horizontal
9.73 m
Dredging depth
6.65 m
Tear-out force
152 kN
Model series
C
Engine manuf.
FPT
Engine type
F4HE0687A*J105
Engine power
117 kW
Displacement
6.73 l
Revolutions at max torque
1800 rpm
Max. torque
622 Nm
No. of cylinders
6
Cylinder bore x stroke
104x132 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX220C FAQ

When was the Case CX220C manufactured?

The Case CX220C was first produced in 2021.

How much does the Case CX220C weigh?

The Case CX220C weighs 21.6 tons.

What are the transport dimensions of the Case CX220C crawler excavator?

The Case CX220C has a transport length of 9.43 meters, a transport width of 2.8 meters, and a transport height of 2.95 meters.

What is the track width of the Case CX220C crawler excavator?

The Case CX220C crawler excavator has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Case CX220C?

The Case CX220C has a dredging depth of 6.65 meters and a maximum horizontal reach of 9.73 meters.

What is the tear-out force of the Case CX220C?

The Case CX220C has a tear-out force of 152 kN.

What is the bucket capacity of the Case CX220C crawler excavator?

The Case CX220C crawler excavator has a bucket capacity of 1.1 cubic meters.
