CX210E Case excavator specs & Dimensions (2022 - 2026)

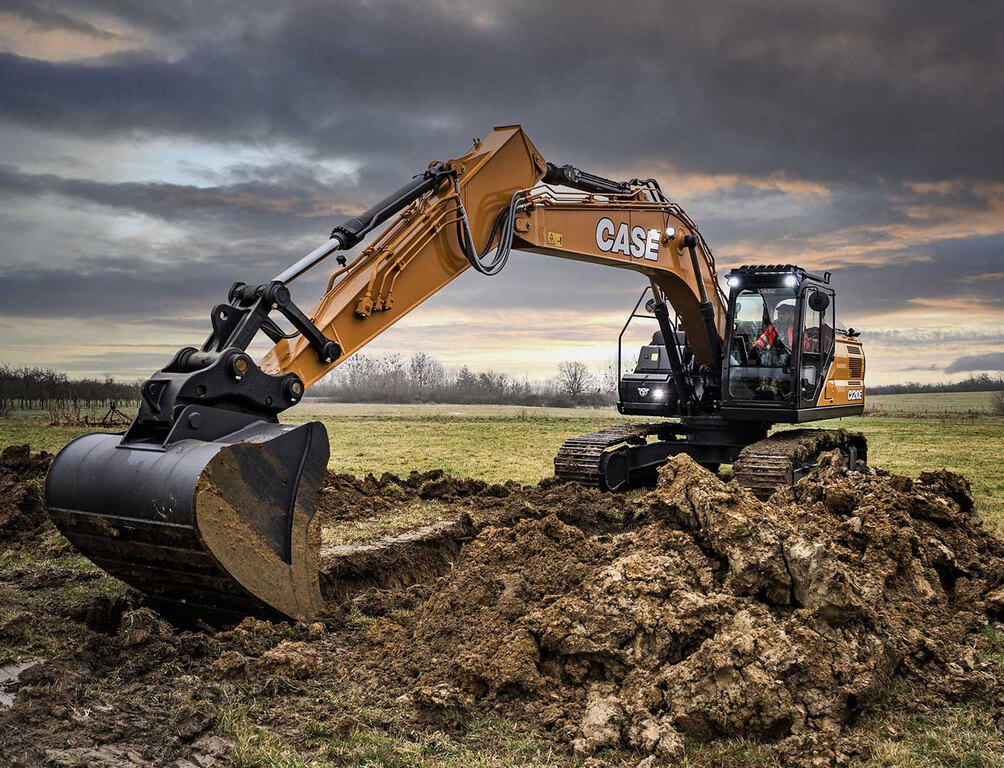

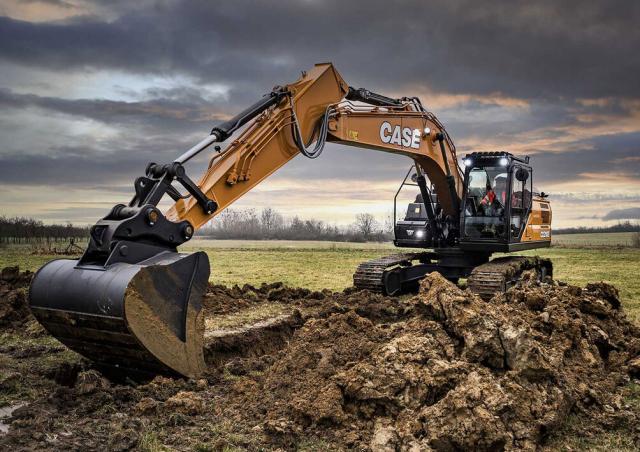

Case CX210E is a crawler excavator manufactured since 2022. It has a weight of 23.2 tons and a track width of 500 mm. The transpor…

Case CX210E is a crawler excavator manufactured since 2022. It has a weight of 23.2 tons and a track width of 500 mm. The transport dimensions are 9.6 meters in length, 2.49 meters in width, and 3.1 meters in height. The machine features a tear-out force of 142 kN, a dredging depth of 5.8 meters, and a maximum horizontal reach of 9.23 meters. The bucket width is 1.3 meters with a capacity of 1 cubic meter. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX210E

Technical specs - CX210E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.2 t
Transport length
9.6 m
Transport width
2.49 m
Transport height
3.1 m
Bucket capacity
1 m³
Undercarriage
NLC
Track width
500 mm
Boom
VA
Max. Reach horizontal
9.23 m
Dredging depth
5.8 m
Tear-out force
142 kN
Bucket width
1.3 m
Model series
E
Engine manuf.
FPT
Engine type
NEF6
Engine power
120.4 kW
Displacement
6.7 l
Revolutions at max torque
1600 rpm
Max. torque
644 Nm
No. of cylinders
6
Cylinder bore x stroke
104x132 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Case CX210E FAQ

When was the Case CX210E manufactured?

The Case CX210E was first produced in 2022.

How much does the Case CX210E weigh?

The Case CX210E weighs 23.2 tons.

What are the transport dimensions of the Case CX210E crawler excavator?

The Case CX210E has a transport length of 9.6 meters, a transport width of 2.49 meters, and a transport height of 3.1 meters.

What are the undercarriage specifications of the Case CX210E?

The Case CX210E has a small undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Case CX210E?

The Case CX210E has an adjustable boom, a maximum horizontal reach of 9.23 meters, and a dredging depth of 5.8 meters.

What is the tear-out force of the Case CX210E?

The Case CX210E has a tear-out force of 142 kN.

What are the specifications of the primary work tool bucket on the Case CX210E?

The primary work tool bucket of the Case CX210E has a capacity of 1 cubic meter and a width of 1.3 meters.

How much is a Case CX210E Crawler excavator (2022u20132025) worth?

The residual value of the Case CX210E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
