CX210D LR Case excavator specs & Dimensions (2015 - 2021)

Case CX210D LR is a Crawler Excavator manufactured from 2015 to 2023, with a weight of 23.6 tons. It features a track width of 500…

Case CX210D LR is a Crawler Excavator manufactured from 2015 to 2023, with a weight of 23.6 tons. It features a track width of 500 mm, a transport length of 12.52 meters, a transport width of 3.19 meters, and a transport height of 3.28 meters. The machine has a tear-out force of 65 kN, a dredging depth of 12.01 meters, and a maximum horizontal reach of 15.49 meters. The bucket width is 0.8 meters, and the bucket capacity is 0.37 cubic meters. Special equipment includes air conditioning, an overload alert, and a hydraulic quick hitch.

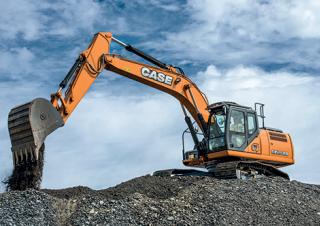

Crawler Excavators Case CX210D LR
Crawler Excavators Case CX210D LR
Crawler Excavators Case CX210D LR
Crawler Excavators Case CX210D LR
Crawler Excavators Case CX210D LR
Crawler Excavators Case CX210D LR
Crawler Excavators Case CX210D LR
Crawler Excavators Case CX210D LR

Technical specs - CX210D LR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.6 t
Transport length
12.52 m
Transport width
3.19 m
Transport height
3.28 m
Bucket capacity
0.37 m³
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
15.49 m
Dredging depth
12.01 m
Tear-out force
65 kN
Bucket width
0.8 m
Model series
D
Engine manuf.
Isuzu
Engine type
AR 4HK1X
Engine power
119.3 kW
Displacement
5.2 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX210D LR FAQ

When was the Case CX210D LR manufactured?

The Case CX210D LR was manufactured from 2015 to 2021.

How much does the Case CX210D LR weigh?

The Case CX210D LR weighs 23.6 tons.

What are the transport dimensions of the Case CX210D LR crawler excavator?

The Case CX210D LR has a transport length of 12.52 meters, a transport width of 3.19 meters, and a transport height of 3.28 meters.

What are the undercarriage specifications of the Case CX210D LR?

The Case CX210D LR has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Case CX210D LR crawler excavator?

The Case CX210D LR crawler excavator has a dredging depth of 12.01 meters, a maximum horizontal reach of 15.49 meters, and features a monobloc boom.

What are the power ratings of the Case CX210Du0000LR?

The source data does not provide power ratings for the Case CX210Du0000LR.

What are the bucket specifications of the Case CX210D LR crawler excavator?

The Case CX210D LR crawler excavator has a bucket capacity of 0.37 cubic meters and a bucket width of 0.8 meters.

How much is a Case CX210Du00a0LR Crawler excavator (2015u20132021) worth?

The residual value of the Case CX210Du00a0LR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
