CX210D   Case excavator specs & Dimensions (2015 - 2021)

Case CX210D is a Crawler Excavator manufactured from 2015 to 2023. It has a weight of 21.7 tons and a track width of 600 mm. The t…

Case CX210D is a Crawler Excavator manufactured from 2015 to 2023. It has a weight of 21.7 tons and a track width of 600 mm. The transport dimensions are 9.51 meters in length, 2.99 meters in width, and 3.31 meters in height. The machine features a tear-out force of 142 kN, a dredging depth of 6.11 meters, and a maximum horizontal reach of 9.24 meters. The bucket width is 1.3 meters with a capacity of 1 cubic meter. Special equipment includes air conditioning, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX210D

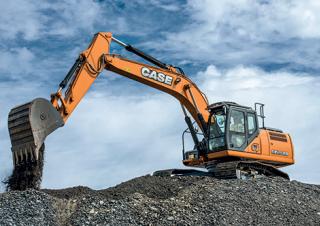

Crawler Excavators Case CX210D

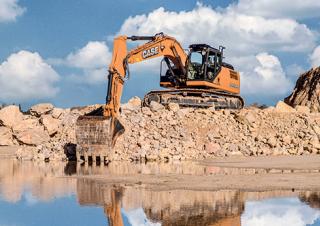

Crawler Excavators Case CX210D

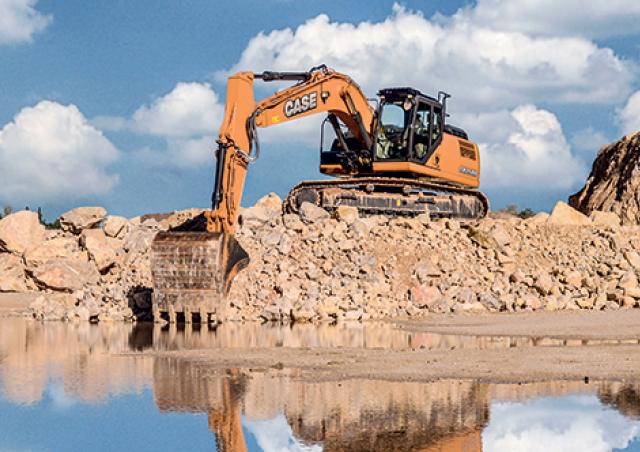

Crawler Excavators Case CX210D
Crawler Excavators Case CX210D
Crawler Excavators Case CX210D

Technical specs - CX210D   Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.7 t
Transport length
9.51 m
Transport width
2.99 m
Transport height
3.31 m
Bucket capacity
1 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.24 m
Dredging depth
6.11 m
Tear-out force
142 kN
Bucket width
1.3 m
Model series
D
Engine manuf.
Isuzu
Engine type
AR 4HK1X
Engine power
119.3 kW
Displacement
5.2 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX210D   FAQ

When was the Case CX210D manufactured?

The Case CX210D was manufactured from 2015 to 2021.

How much does the Case CX210D weigh?

The Case CX210D weighs 21.7 tons.

What are the transport dimensions of the Case CX210D?

The Case CX210D has a transport length of 9.51 meters, a transport width of 2.99 meters, and a transport height of 3.31 meters.

What are the undercarriage specifications of the Case CX210D?

The Case CX210D has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX210D?

The Case CX210D has a dredging depth of 6.11 meters, a maximum horizontal reach of 9.24 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX210D?

The Case CX210D has a tear-out force of 142 kN.

What are the specifications of the primary work tool bucket on the Case CX210D?

The primary work tool bucket on the Case CX210D has a capacity of 1 cubic meter and a width of 1.3 meters.

How much is a Case CX210D u00a0 Crawler excavator (2015u20132021) worth?

The residual value of the Case CX210D u00a0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
