CX160E Case excavator specs & Dimensions (2022 - 2026)

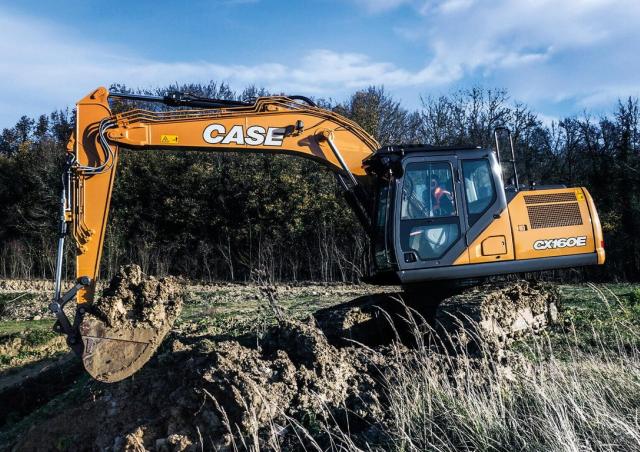

Case CX160E is a Crawler Excavator manufactured since 2022. It has a weight of 17.3 tons and a track width of 600 mm. The transpor…

Case CX160E is a Crawler Excavator manufactured since 2022. It has a weight of 17.3 tons and a track width of 600 mm. The transport dimensions are 8.52 meters in length, 2.59 meters in width, and 3.05 meters in height. The excavator features a tear-out force of 112 kN, a dredging depth of 6.06 meters, and a maximum horizontal reach of 8.87 meters. The bucket width is 0.9 meters with a capacity of 0.62 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX160E

Technical specs - CX160E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.3 t
Transport length
8.52 m
Transport width
2.59 m
Transport height
3.05 m
Bucket capacity
0.62 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.87 m
Dredging depth
6.06 m
Tear-out force
112 kN
Bucket width
0.9 m
Model series
E
Engine manuf.
FPT
Engine type
NEF4
Engine power
90.4 kW
Displacement
4.5 l
Revolutions at max torque
1600 rpm
Max. torque
456 Nm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Case CX160E FAQ

When was the Case CX160E manufactured?

The Case CX160E was first produced in 2022.

How much does the Case CX160E crawler excavator weigh?

The Case CX160E crawler excavator weighs 17.3 tons.

What are the transport dimensions of the Case CX160E crawler excavator?

The Case CX160E crawler excavator has a transport length of 8.52 meters, a transport width of 2.59 meters, and a transport height of 3.05 meters.

What are the undercarriage specifications of the Case CX160E?

The Case CX160E has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX160E?

The Case CX160E has a dredging depth of 6.06 meters, a maximum horizontal reach of 8.87 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX160E?

The Case CX160E has a tear-out force of 112 kN. No power rating data is provided in the source.

What are the specifications of the primary work tool bucket on the Case CX160E?

The primary work tool bucket of the Case CX160E has a capacity of 0.62 cubic meters and a width of 0.9 meters.
