CX130D Case excavator specs & Dimensions (2015 - 2021)

Case CX130D is a Crawler Excavator manufactured from 2015 to 2023, with a weight of 13.8 tons. It features a track width of 600 mm…

Case CX130D is a Crawler Excavator manufactured from 2015 to 2023, with a weight of 13.8 tons. It features a track width of 600 mm, a transport length of 7.9 meters, a transport width of 2.59 meters, and a transport height of 2.77 meters. The machine has a tear-out force of 90 kN, a dredging depth of 5.5 meters, and a maximum horizontal reach of 8.17 meters. The bucket width is 1 meter, and the bucket capacity is 0.76 cubic meters. Special equipment includes air conditioning, a blade, an overload alert, and a hydraulic quick hitch.

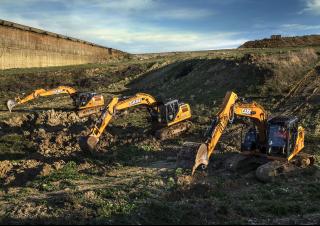

Crawler Excavators Case CX130D
Crawler Excavators Case CX130D
Crawler Excavators Case CX130D
Crawler Excavators Case CX130D
Crawler Excavators Case CX130D
Crawler Excavators Case CX130D
Crawler Excavators Case CX130D
Crawler Excavators Case CX130D

Technical specs - CX130D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.8 t
Transport length
7.9 m
Transport width
2.59 m
Transport height
2.77 m
Bucket capacity
0.76 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.17 m
Dredging depth
5.5 m
Tear-out force
90 kN
Bucket width
1 m
Model series
D
Engine manuf.
Isuzu
Engine type
AR 4JJ1X
Engine power
76.4 kW
Displacement
3 l
Revolutions at max torque
1600 rpm
Max. torque
349 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4x104.9 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX130D FAQ

When was the Case CX130D manufactured?

The Case CX130D was manufactured from 2015 to 2021.

How much does the Case CX130D weigh?

The Case CX130D weighs 13.8 tons.

What are the transport dimensions of the Case CX130D crawler excavator?

The Case CX130D has a transport length of 7.9 meters, a transport width of 2.59 meters, and a transport height of 2.77 meters.

What are the undercarriage specifications of the Case CX130D?

The Case CX130D has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX130D?

The Case CX130D has a dredging depth of 5.5 meters, a maximum horizontal reach of 8.17 meters, and features a monobloc boom.

What is the tear-out force of the Case CX130D?

The Case CX130D has a tear-out force of 90 kN.

What are the bucket specifications of the Case CX130D excavator?

The Case CX130D excavator has a bucket capacity of 0.76 cubic meters and a bucket width of 1 meter.

How much is a Case CX130D Crawler excavator (2015u20132021) worth?

The residual value of the Case CX130D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
