CX 290 B NLC Case excavator specs & Dimensions (2007 - 2012)

Case CX 290 B NLC is a crawler excavator manufactured from 2007 to 2012. It has a weight of 29.8 tons, a track width of 600 mm, a …

Case CX 290 B NLC is a crawler excavator manufactured from 2007 to 2012. It has a weight of 29.8 tons, a track width of 600 mm, a transport length of 10.41 meters, a transport width of 3.2 meters, and a transport height of 3.27 meters. The excavator is equipped with air conditioning and an overload alert system.

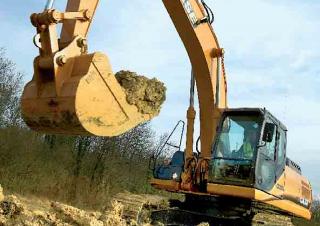

Crawler Excavators Case CX 290 B NLC

Technical specs - CX 290 B NLC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.8 t
Transport length
10.41 m
Transport width
3.2 m
Transport height
3.27 m
Bucket capacity
1.64 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.16 m
Dredging depth
7.58 m
Tear-out force
109.8 kN
Model series
B
Engine manuf.
Isuzu
Engine type
4 HK 1 X
Engine power
154 kW
Displacement
7.8 l

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 290 B NLC FAQ

When was the Case CX 290 B NLC manufactured?

The Case CX 290 B NLC was manufactured from 2007 to 2012.

How much does the Case CX 290 B NLC weigh?

The Case CX 290 B NLC weighs 29.8 tons.

What are the transport dimensions of the Case CX 290 B NLC crawler excavator?

The Case CX 290 B NLC has a transport length of 10.41 meters, a transport width of 3.2 meters, and a transport height of 3.27 meters.

What are the undercarriage specifications of the Case CX 290 B NLC?

The Case CX 290 B NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX 290 B NLC?

The Case CX 290 B NLC has a dredging depth of 7.58 meters, a maximum horizontal reach of 11.16 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX 290 B NLC?

The Case CX 290 B NLC has a tear-out force of 109.8 kN.

What is the bucket capacity of the Case CX 290 B NLC excavator?

The Case CX 290 B NLC excavator has a bucket capacity of 1.64 cubic meters.
