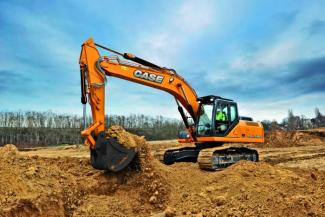

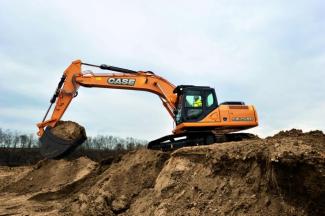

CX 250 C LC NLC Case excavator specs & Dimensions (2012 - 2014)

Case CX 250 C LC NLC is a crawler excavator manufactured from 2012 to 2014. It has a weight of 24.7 tons, a track width of 600 mm,…

Case CX 250 C LC NLC is a crawler excavator manufactured from 2012 to 2014. It has a weight of 24.7 tons, a track width of 600 mm, a transport length of 9.4 meters, a transport width of 2.99 meters, and a transport height of 3 meters. The machine features a tear-out force of 107 kN and comes equipped with air conditioning and an overload alert system.

CX 250 C LC NLC

Years of manufacture: 2012—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CX 250 C LC NLC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 24.7 t

Transport length: 9.4 m

Transport width: 2.99 m

Transport height: 3 m

Bucket capacity: 1.4 m³

Undercarriage: NLC

Track width: 600 mm

Boom: MB

Max. Reach horizontal: 10.79 m

Dredging depth: 7.42 m

Tear-out force: 107 kN

Bucket width: 1.4 m

Model series: C

Engine manuf.: Isuzu

Engine type: AM 4 HK 1 X

Engine power: 132 kW

Displacement: 5.2 l

Revolutions at max torque: 2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case CX 250 C LC NLC FAQ

When was the Case CX 250 C LC NLC manufactured?

The Case CX 250 C LC NLC was manufactured from 2012 to 2014.

How much does the Case CX 250 C LC NLC weigh?

The Case CX 250 C LC NLC weighs 24.7 tons.

What are the transport dimensions of the Case CX 250 C LC NLC?

The transport dimensions of the Case CX 250 C LC NLC are 9.4 meters in length, 2.99 meters in width, and 3 meters in height.

What are the undercarriage specifications of the Case CX 250 C LC NLC?

The Case CX 250 C LC NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX 250 C LC NLC?

The Case CX 250 C LC NLC has a dredging depth of 7.42 meters, a maximum horizontal reach of 10.79 meters, and features a monobloc boom.

What is the power rating of the Case CX 250 C LC NLC?

The power rating of the Case CX 250 C LC NLC is not provided in the available data.

What are the specifications of the primary work tool bucket on the Case CX 250 C LC NLC?

The primary work tool bucket of the Case CX 250 C LC NLC has a capacity of 1.4 cubic meters and a width of 1.4 meters.

How much is a Case CX 250 C LC NLC Crawler excavator (2012u20132014) worth?

The residual value of the Case CX 250 C LC NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
