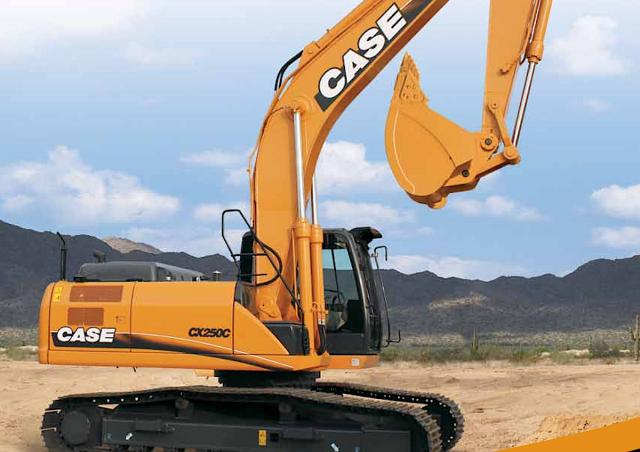

CX 250 C Case excavator specs & Dimensions (2011 - 2015)

Case CX 250 C is a Crawler Excavator manufactured from 2011 to 2015. It has a weight of 25.1 tons and a track width of 800 mm. The…

Case CX 250 C is a Crawler Excavator manufactured from 2011 to 2015. It has a weight of 25.1 tons and a track width of 800 mm. The transport dimensions are 9.95 meters in length, 3.39 meters in width, and 3.36 meters in height. The excavator features a tear-out force of 162 kN, a dredging depth of 7.42 meters, and a maximum horizontal reach of 10.62 meters. The bucket width is 1.83 meters, with a bucket capacity ranging from 0.86 m³ to 2.24 m³. It is equipped with air conditioning.

Crawler Excavators Case CX 250 C

Technical specs - CX 250 C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.1 t
Transport length
9.95 m
Transport width
3.39 m
Transport height
3.36 m
Bucket capacity
2.24 m³
Bucket capacity min.
0.86 m³
Bucket capacity max.
2.24 m³
Undercarriage
LC
Track width
800 mm
Max. Reach horizontal
10.62 m
Dredging depth
7.42 m
Tear-out force
162 kN
Bucket width
1.83 m
Model series
C
Engine manuf.
Isuzu
Engine type
AL-4HK1X
Engine power
132 kW
Displacement
5.2 l
Revolutions at max torque
2000 rpm
Max. torque
621/1800 Nm
No. of cylinders
4
Emission level
Tier IVA

More technical details, like: boom, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 250 C FAQ

When was the Case CX 250 C manufactured?

The Case CX 250 C was manufactured from 2011 to 2015.

How much does the Case CX 250 C weigh?

The Case CX 250 C weighs 25.1 tons.

What are the transport dimensions of the Case CX 250 C crawler excavator?

The Case CX 250 C has a transport length of 9.95 meters, a transport width of 3.39 meters, and a transport height of 3.36 meters.

What are the undercarriage specifications of the Case CX 250 C?

The Case CX 250 C has a long undercarriage with a track width of 800 mm.

What is the excavation performance of the Case CX 250 C?

The Case CX 250 C has a dredging depth of 7.42 meters and a maximum horizontal reach of 10.62 meters.

What are the power ratings of the Case CX 250 C?

The source data does not provide power ratings for the Case CX 250 C.

What are the bucket specifications of the Case CX 250 C crawler excavator?

The Case CX 250 C has a bucket capacity ranging from 0.86 to 2.24 cubic meters, with a bucket width of 1.83 meters.

How much is a Case CX 250 C Crawler excavator (2011u20132015) worth?

The residual value of the Case CX 250 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
