CX 240 B NLC Case excavator specs & Dimensions (2003 - 2015)

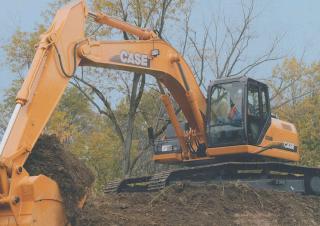

Case CX 240 B NLC is a crawler excavator manufactured from 2003 to 2015. It has a weight of 24.5 tons and a track width of 600 mm.…

Case CX 240 B NLC is a crawler excavator manufactured from 2003 to 2015. It has a weight of 24.5 tons and a track width of 600 mm. The transport dimensions are 9.98 meters in length, 2.99 meters in width, and 3.31 meters in height. The dredging depth is 7.42 meters, and the maximum horizontal reach is 10.62 meters. The bucket width is 1.4 meters, with a bucket capacity ranging from 0.48 m³ to 1.43 m³.

Crawler Excavators Case CX 240 B NLC

Technical specs - CX 240 B NLC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.5 t
Transport length
9.98 m
Transport width
2.99 m
Transport height
3.31 m
Bucket capacity
1.43 m³
Bucket capacity min.
0.48 m³
Bucket capacity max.
1.43 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.62 m
Dredging depth
7.42 m
Bucket width
1.4 m
Model series
B
Engine manuf.
Isuzu
Engine type
AH-4HK1X
Engine power
132 kW
Displacement
5.193 l
Revolutions at max torque
1500 rpm
Max. torque
636 Nm
No. of cylinders
4
Cylinder bore x stroke
115x125 mm

More technical details, like: tear-out force, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 240 B NLC FAQ

When was the Case CX 240 B NLC manufactured?

The Case CX 240 B NLC was manufactured from 2003 to 2015.

How much does the Case CX 240 B NLC weigh?

The Case CX 240 B NLC weighs 24.5 tons.

What are the transport dimensions of the Case CX 240 B NLC crawler excavator?

The Case CX 240 B NLC has a transport length of 9.98 meters, a transport width of 2.99 meters, and a transport height of 3.31 meters.

What are the undercarriage specifications of the Case CX 240 B NLC?

The Case CX 240 B NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX 240 B NLC?

The Case CX 240 B NLC has a dredging depth of 7.42 meters, a maximum horizontal reach of 10.62 meters, and is equipped with a Monobloc boom.

What are the specifications of the primary work tool bucket on the Case CX 240 B NLC?

The Case CX 240 B NLC's bucket has a capacity ranging from 0.48 to 1.43 cubic meters, with a standard capacity of 1.43 cubic meters and a width of 1.4 meters.

How much is a Case CX 240 B NLC Crawler excavator (2003u20132015) worth?

The residual value of the Case CX 240 B NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
