CX 225 SR Case excavator specs & Dimensions (2002 - 2008)

Case CX 225 SR is a crawler excavator manufactured from 2002 to 2008. It has a weight of 22.7 tons and a track width of 600 mm. Th…

Case CX 225 SR is a crawler excavator manufactured from 2002 to 2008. It has a weight of 22.7 tons and a track width of 600 mm. The transport dimensions are 9.05 meters in length, 2.9 meters in width, and 3.05 meters in height. The tear-out force is 126 kN. Special equipment includes air conditioning, a blade, and an overload alert system.

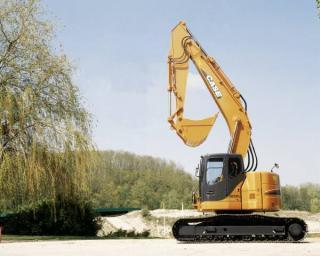

Crawler Excavators Case CX 225 SR

Technical specs - CX 225 SR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.7 t
Transport length
9.05 m
Transport width
2.9 m
Transport height
3.05 m
Bucket capacity
1.1 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.9 m
Dredging depth
6.7 m
Tear-out force
126 kN
Bucket width
1.35 m
Model series
SR
Engine manuf.
Isuzu
Engine type
BB-6BG1T
Engine power
103 kW
Displacement
6.494 l
Revolutions at max torque
1950 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 225 SR FAQ

When was the Case CX 225 SR manufactured?

The Case CX 225 SR was manufactured from 2002 to 2008.

How much does the Case CX 225 SR weigh?

The Case CX 225 SR weighs 22.7 tons.

What are the transport dimensions of the Case CX 225 SR crawler excavator?

The transport dimensions of the Case CX 225 SR are 9.05 meters in length, 2.9 meters in width, and 3.05 meters in height.

What are the undercarriage specifications of the Case CX 225 SR?

The Case CX 225 SR has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX 225 SR?

The Case CX 225 SR has a dredging depth of 6.7 meters, a maximum horizontal reach of 9.9 meters, and features a monobloc boom.

What is the tear-out force of the Case CX 225 SR?

The Case CX 225 SR has a tear-out force of 126 kN. No power rating data is provided for this model.

What are the specifications of the primary work tool bucket on the Case CX 225 SR?

The primary work tool bucket of the Case CX 225 SR has a capacity of 1.1 cubic meters and a width of 1.35 meters.
