CX 225 MSR Case excavator specs & Dimensions (2011 - 2015)

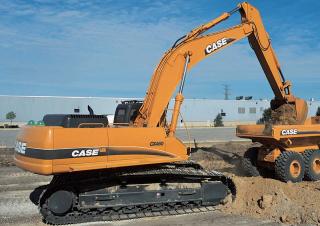

Case CX 225 MSR is a crawler excavator manufactured from 2011 to 2015. It has a weight of 24.2 tons and a track width of 800 mm. T…

Case CX 225 MSR is a crawler excavator manufactured from 2011 to 2015. It has a weight of 24.2 tons and a track width of 800 mm. The transport dimensions are 8.93 meters in length, 3.19 meters in width, and 3.14 meters in height. The machine features a tear-out force of 130 kN, a dredging depth of 6.7 meters, and a maximum horizontal reach of 9.73 meters. The bucket width is 1.68 meters, with a capacity ranging from 0.42 m³ to 1.17 m³.

Crawler Excavators Case CX 225 MSR

Technical specs - CX 225 MSR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.2 t
Transport length
8.93 m
Transport width
3.19 m
Transport height
3.14 m
Bucket capacity
1.17 m³
Bucket capacity min.
0.42 m³
Bucket capacity max.
1.17 m³
Track width
800 mm
Max. Reach horizontal
9.73 m
Dredging depth
6.7 m
Tear-out force
130 kN
Bucket width
1.68 m
Model series
MSR
Engine manuf.
Isuzu
Engine type
AI-4HK1X
Engine power
114.4 kW
Displacement
5.193 l

More technical details, like: undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 225 MSR FAQ

When was the Case CX 225 MSR manufactured?

The Case CX 225 MSR was manufactured from 2011 to 2015.

How much does the Case CX 225 MSR weigh?

The Case CX 225 MSR weighs 24.2 tons.

What are the transport dimensions of the Case CX 225 MSR?

The Case CX 225 MSR has a transport length of 8.93 meters, a transport width of 3.19 meters, and a transport height of 3.14 meters.

What is the track width of the Case CX 225 MSR crawler excavator?

The Case CX 225 MSR crawler excavator has a track width of 800 mm.

What is the excavation performance of the Case CX 225 MSR?

The Case CX 225 MSR has a dredging depth of 6.7 meters and a maximum horizontal reach of 9.73 meters.

What is the tear-out force of the Case CX 225 MSR?

The Case CX 225 MSR has a tear-out force of 130 kN.

What are the specifications of the bucket on the Case CX 225 MSR crawler excavator?

The Case CX 225 MSR crawler excavator has a bucket with a capacity ranging from 0.42 to 1.17 cubic meters and a width of 1.68 meters.

How much is a Case CX 225 MSR Crawler excavator (2011u20132015) worth?

The residual value of the Case CX 225 MSR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CX 225 MSR overview

Equipment

CX Excavators Features

Like all CX excavators, two-pump flow on boom/arm circuits assist boom lowering and arm closing speed to trim work cycles. Features like free swing control help keep loads moving quickly and efficiently. The standard Power Boost and Auto Work Mode on the CX130 and CX160 optimize productivity on any job site. Additionally, like all CX models, these machines offer a choice of three optional auxiliary hydraulics packages to meet your application needs: single-acting one pump, double-acting single or dual pump, and double-acting general purpose for use with the optional thumb kit.
