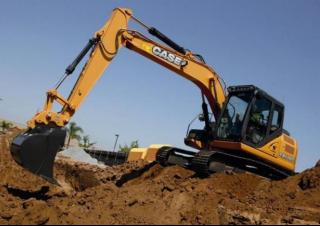

CX 130 C Case excavator specs & Dimensions (2008 - 2015)

Case CX 130 C is a Crawler Excavator manufactured from 2008 to 2015. It has a weight of 12.27 tons and a track width of 600 mm. Th…

Case CX 130 C is a Crawler Excavator manufactured from 2008 to 2015. It has a weight of 12.27 tons and a track width of 600 mm. The transport dimensions are 7.77 meters in length, 2.59 meters in width, and 2.77 meters in height. The excavator features a tear-out force of 102 kN, a dredging depth of 6.1 meters, and a maximum horizontal reach of 8.61 meters. The bucket capacity ranges from 0.38 m³ to 0.67 m³. Special equipment includes a blade.

Crawler Excavators Case CX 130 C

Technical specs - CX 130 C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.27 t
Transport length
7.77 m
Transport width
2.59 m
Transport height
2.77 m
Bucket capacity
0.67 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
0.67 m³
Track width
600 mm
Max. Reach horizontal
8.61 m
Dredging depth
6.1 m
Tear-out force
102 kN
Model series
C
Engine manuf.
Case
Engine type
4TA 390
Engine power
79 kW

More technical details, like: undercarriage, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 130 C FAQ

When was the Case CX 130 C manufactured?

The Case CX 130 C was manufactured from 2008 to 2015.

How much does the Case CX 130 C weigh?

The Case CX 130 C weighs 12.27 tons.

What are the transport dimensions of the Case CX 130 C crawler excavator?

The Case CX 130 C has a transport length of 7.77 meters, a transport width of 2.59 meters, and a transport height of 2.77 meters.

What is the track width of the Case CX 130 C crawler excavator?

The Case CX 130 C crawler excavator has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Case CX 130 C?

The Case CX 130 C has a dredging depth of 6.1 meters and a maximum horizontal reach of 8.61 meters.

What is the power rating of the Case CX 130 C?

The available data does not provide the power rating for the Case CX 130 C.

What are the bucket capacity specifications of the Case CX 130 C excavator?

The Case CX 130 C has a bucket capacity of 0.67 cubic meters, with a maximum bucket capacity of 0.67 cubic meters and a minimum bucket capacity of 0.38 cubic meters.

How much is a Case CX 130 C Crawler excavator (2008u20132015) worth?

The residual value of the Case CX 130 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
