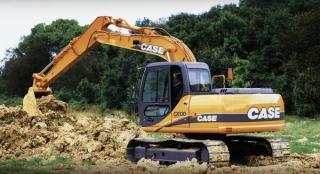

CX 130 Case excavator specs & Dimensions (2001 - 2008)

Case CX 130 is a Crawler Excavator manufactured from 2001 to 2008, with a weight of 12.5 tons. It features a track width of 700 mm…

Case CX 130 is a Crawler Excavator manufactured from 2001 to 2008, with a weight of 12.5 tons. It features a track width of 700 mm, a transport length of 7.49 meters, a transport width of 2.49 meters, and a transport height of 2.74 meters. The bucket width is 1 meter, and it includes special equipment such as air conditioning and an overload alert system.

Crawler Excavators Case CX 130

Technical specs - CX 130 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.5 t
Transport length
7.49 m
Transport width
2.49 m
Transport height
2.74 m
Bucket capacity
0.62 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
8.74 m
Dredging depth
10.1 m
Tear-out force
80.2 kN
Bucket width
1 m
Engine manuf.
Isuzu
Engine type
BB 4 B 1 T
Engine power
69 kW
Displacement
4.329 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 130 FAQ

When was the Case CX 130 manufactured?

The Case CX 130 was manufactured from 2001 to 2008.

How much does the Case CX 130 weigh?

The Case CX 130 weighs 12.5 tons.

What are the transport dimensions of the Case CX 130 crawler excavator?

The Case CX 130 crawler excavator has a transport length of 7.49 meters, a transport width of 2.49 meters, and a transport height of 2.74 meters.

What are the undercarriage specifications of the Case CX 130?

The Case CX 130 has a long undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Case CX 130 crawler excavator?

The Case CX 130 crawler excavator has a dredging depth of 10.1 meters, a maximum horizontal reach of 8.74 meters, and is equipped with a monobloc boom.

What power ratings are available for the Case CX 130?

The source data does not provide any power rating information for the Case CX 130.

What are the bucket specifications of the Case CX 130 crawler excavator?

The Case CX 130 has a bucket capacity of 0.62 cubic meters and a bucket width of 1 meter.

How much is a Case CX 130 Crawler excavator (2001u20132008) worth?

The residual value of the Case CX 130 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
