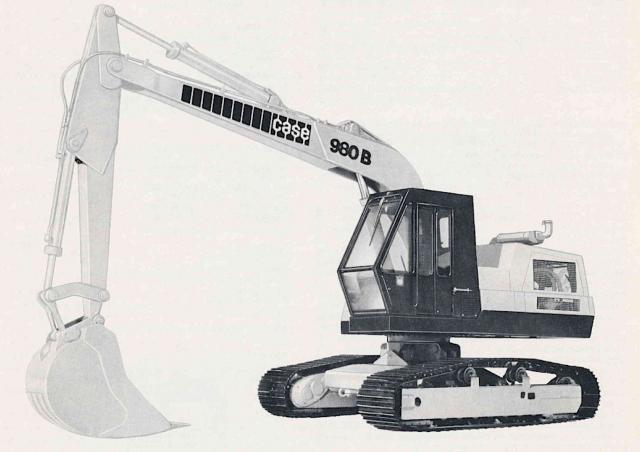

980B Case excavator specs & Dimensions (1977 - 2015)

Case 980B is a Crawler Excavator manufactured from 1977 to 2015. It has a weight of 21.23 tons and a track width of 762 mm. The tr…

Case 980B is a Crawler Excavator manufactured from 1977 to 2015. It has a weight of 21.23 tons and a track width of 762 mm. The transport dimensions are 9.25 meters in length, 3.3 meters in width, and 3.25 meters in height. The dredging depth is 7.01 meters, with a maximum horizontal reach of 9.8 meters. The bucket width is 1.07 meters, and the bucket capacity ranges from 0.57 to 0.97 cubic meters.

Crawler Excavators Case 980B

Technical specs - 980B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.23 t
Transport length
9.25 m
Transport width
3.3 m
Transport height
3.25 m
Bucket capacity
0.97 m³
Bucket capacity min.
0.57 m³
Bucket capacity max.
0.97 m³
Track width
762 mm
Max. Reach horizontal
9.8 m
Dredging depth
7.01 m
Bucket width
1.07 m
Model series
B
Engine manuf.
Case
Engine type
505 BDT
Engine power
134 kW
Displacement
8.25 l
Revolutions at max torque
1600 rpm
Max. torque
648 Nm
No. of cylinders
6
Cylinder bore x stroke
117.4x128 mm

More technical details, like: undercarriage, boom, tear-out force, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 980B FAQ

When was the Case 980B manufactured?

The Case 980B was manufactured from 1977 to 2015.

How much does the Case 980B weigh?

The Case 980B weighs 21.23 tons.

What are the transport dimensions of the Case 980B crawler excavator?

The Case 980B crawler excavator has a transport length of 9.25 meters, a transport width of 3.3 meters, and a transport height of 3.25 meters.

What is the track width of the Case 980B crawler excavator?

The Case 980B crawler excavator has a track width of 762 mm.

What are the excavation performance specifications of the Case 980B?

The Case 980B has a dredging depth of 7.01 meters and a maximum horizontal reach of 9.8 meters.

What are the bucket specifications of the Case 980B crawler excavator?

The Case 980B crawler excavator has a bucket capacity ranging from 0.57 to 0.97 cubic meters, with a bucket width of 1.07 meters.
