9040B Case excavator specs & Dimensions (1995 - 2015)

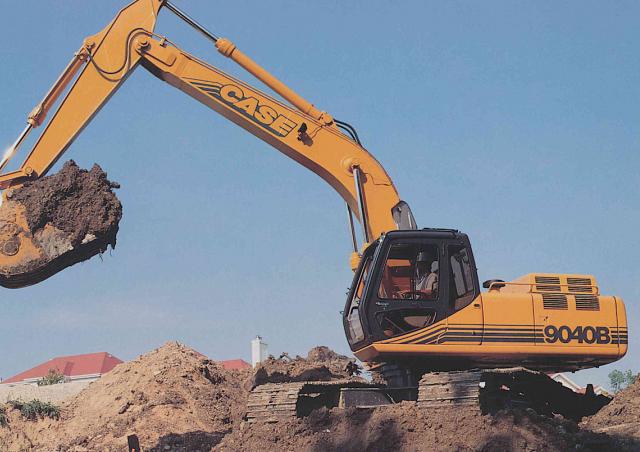

Case 9040B is a Crawler Excavator manufactured from 1995 to 2015. It has a weight of 24.2 tons and a track width of 800 mm. The tr…

Case 9040B is a Crawler Excavator manufactured from 1995 to 2015. It has a weight of 24.2 tons and a track width of 800 mm. The transport dimensions are 10.01 meters in length, 3.39 meters in width, and 3.22 meters in height. The machine features a tear-out force of 138 kN, a dredging depth of 7.4 meters, and a maximum horizontal reach of 10.67 meters. The bucket width is 1.37 meters, with a capacity ranging from 0.73 m³ to 1.39 m³.

Crawler Excavators Case 9040B

Technical specs - 9040B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.2 t
Transport length
10.01 m
Transport width
3.39 m
Transport height
3.22 m
Bucket capacity
1.39 m³
Bucket capacity min.
0.73 m³
Bucket capacity max.
1.39 m³
Undercarriage
HD
Track width
800 mm
Max. Reach horizontal
10.67 m
Dredging depth
7.4 m
Tear-out force
138 kN
Bucket width
1.37 m
Model series
B
Engine manuf.
Case
Engine type
6T 830
Engine power
121 kW
Displacement
8.27 l
Revolutions at max torque
1450 rpm
Max. torque
700 Nm
No. of cylinders
6
Cylinder bore x stroke
114x135 mm

More technical details, like: boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 9040B FAQ

When was the Case 9040B manufactured?

The Case 9040B was manufactured from 1995 to 2015.

How much does the Case 9040B weigh?

The Case 9040B weighs 24.2 tons.

What are the transport dimensions of the Case 9040B crawler excavator?

The Case 9040B has a transport length of 10.01 meters, a transport width of 3.39 meters, and a transport height of 3.22 meters.

What are the undercarriage specifications of the Case 9040B?

The Case 9040B has a heavy duty undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Case 9040B?

The Case 9040B has a dredging depth of 7.4 meters and a maximum horizontal reach of 10.67 meters.

What is the tear-out force of the Case 9040B crawler excavator?

The Case 9040B crawler excavator has a tear-out force of 138 kN.

What are the bucket specifications of the Case 9040B crawler excavator?

The Case 9040B crawler excavator has a bucket capacity ranging from 0.73 to 1.39 cubic meters, with a bucket width of 1.37 meters.
