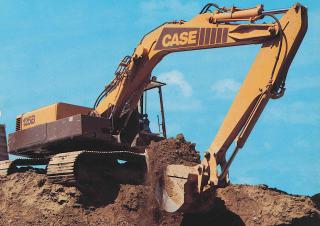

125B Case excavator specs & Dimensions (1985 - 2015)

Case 125B is a Crawler Excavator manufactured from 1985 to 2015. It has a weight of 24.19 tons and a track width of 750 mm. The tr…

Case 125B is a Crawler Excavator manufactured from 1985 to 2015. It has a weight of 24.19 tons and a track width of 750 mm. The transport dimensions are 9.84 meters in length, 3.15 meters in width, and 3.24 meters in height. The excavator features a tear-out force of 154 kN, a dredging depth of 6.86 meters, and a maximum horizontal reach of 10.15 meters. The bucket width is 1.22 meters, with a bucket capacity ranging from 0.76 m³ to 1.43 m³.

Crawler Excavators Case 125B

Technical specs - 125B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.19 t
Transport length
9.84 m
Transport width
3.15 m
Transport height
3.24 m
Bucket capacity
1.43 m³
Bucket capacity min.
0.76 m³
Bucket capacity max.
1.43 m³
Track width
750 mm
Max. Reach horizontal
10.15 m
Dredging depth
6.86 m
Tear-out force
154 kN
Bucket width
1.22 m
Model series
B
Engine manuf.
Deutz
Engine type
BF6L913
Engine power
110 kW
Displacement
6.13 l
Revolutions at max torque
1500 rpm
Max. torque
508 Nm
No. of cylinders
6
Cylinder bore x stroke
102x125 mm

More technical details, like: undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 125B FAQ

When was the Case 125B manufactured?

The Case 125B was manufactured from 1985 to 2015.

How much does the Case 125B weigh?

The Case 125B weighs 24.19 tons.

What are the transport dimensions of the Case 125B crawler excavator?

The Case 125B crawler excavator has a transport length of 9.84 meters, a transport width of 3.15 meters, and a transport height of 3.24 meters.

What is the track width of the Case 125B crawler excavator?

The Case 125B crawler excavator has a track width of 750 mm.

What is the excavation performance of the Case 125B crawler excavator?

The Case 125B crawler excavator has a dredging depth of 6.86 meters and a maximum horizontal reach of 10.15 meters.

What are the power ratings of the Case 125B crawler excavator?

There are no power rating specifications available for the Case 125B crawler excavator in the provided data.

What are the specifications of the primary work tool bucket on the Case 125B?

The Case 125B has a bucket with a capacity ranging from 0.76 to 1.43 cubic meters and a width of 1.22 meters.
