1288 CK Case Poclain excavator specs & Dimensions (1992 - 1996)

Model rating
4,00 / 10

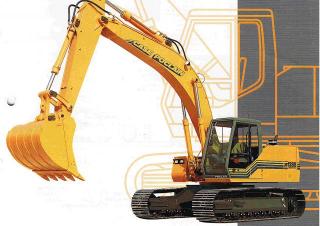

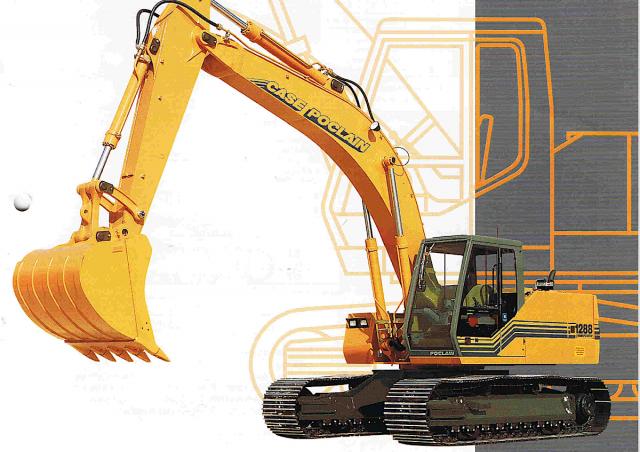

Case Poclain 1288 CK is a crawler excavator manufactured from 1992 to 1996, with a weight of 26.3 tons. It features a track width …

Case Poclain 1288 CK is a crawler excavator manufactured from 1992 to 1996, with a weight of 26.3 tons. It features a track width of 600 mm, a transport length of 10 meters, a transport width of 2.97 meters, and a transport height of 3 meters.

Crawler Excavators Case Poclain 1288 CK

Technical specs - 1288 CK Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.3 t
Transport length
10 m
Transport width
2.97 m
Transport height
3 m
Bucket capacity
1.53 m³
Track width
600 mm
Model series
CK
Engine manuf.
Case
Engine type
6T 830
Engine power
128 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 1288 CK FAQ

When was the Case Poclain 1288 CK manufactured?

The Case Poclain 1288 CK was manufactured from 1992 to 1996.

How much does the Case Poclain 1288 CK weigh?

The Case Poclain 1288 CK weighs 26.3 tons.

What are the transport dimensions of the Case Poclain 1288 CK?

The Case Poclain 1288 CK has a transport length of 10 meters, a transport width of 2.97 meters, and a transport height of 3 meters.

What is the track width of the Case Poclain 1288 CK's undercarriage?

The Case Poclain 1288 CK has a track width of 600 mm.

What is the bucket capacity of the Case Poclain 1288 CK excavator?

The Case Poclain 1288 CK has a bucket capacity of 1.53 cubic meters.

How much is a Case Poclain 1288 CK Crawler excavator (1992u20131996) worth?

The residual value of the Case Poclain 1288 CK depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
