1188 LC Case Poclain excavator specs & Dimensions (1995 - 1999)

Model rating
6,67 / 10

Case Poclain 1188 LC is a crawler excavator manufactured from 1995 to 1999, with a weight of 22.5 tons. It features a track width …

Case Poclain 1188 LC is a crawler excavator manufactured from 1995 to 1999, with a weight of 22.5 tons. It features a track width of 600 mm, a transport length of 9.15 meters, a transport width of 2.97 meters, and a transport height of 3.1 meters.

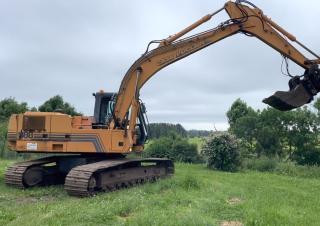

Crawler Excavators Case Poclain 1188 LC

Technical specs - 1188 LC Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.5 t
Transport length
9.15 m
Transport width
2.97 m
Transport height
3.1 m
Bucket capacity
0.9 m³
Track width
600 mm
Engine manuf.
Case
Engine type
6T 590
Engine power
95 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 1188 LC FAQ

When was the Case Poclain 1188 LC manufactured?

The Case Poclain 1188 LC was manufactured from 1995 to 1999.

How much does the Case Poclain 1188 LC weigh?

The Case Poclain 1188 LC weighs 22.5 tons.

What are the transport dimensions of the Case Poclain 1188 LC crawler excavator?

The Case Poclain 1188 LC has a transport length of 9.15 meters, a transport width of 2.97 meters, and a transport height of 3.1 meters.

What is the track width of the Case Poclain 1188 LC's undercarriage?

The Case Poclain 1188 LC has a track width of 600 mm.

What is the bucket capacity of the Case Poclain 1188 LC?

The bucket capacity of the Case Poclain 1188 LC is 0.9 cubic meters.
