BE220LC Beml excavator specs & Dimensions (2007 - 2026)

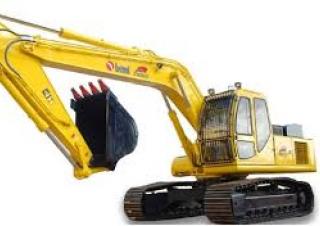

Beml BE220LC is a crawler excavator manufactured since 2007. It has a weight of 22 tons and a track width of 610 mm. The transport…

Beml BE220LC is a crawler excavator manufactured since 2007. It has a weight of 22 tons and a track width of 610 mm. The transport dimensions are 10 meters in length, 2 meters in width, and 3 meters in height. The excavator features a tear-out force of 125 kN, a dredging depth of 7 meters, and a maximum horizontal reach of 9 meters. The bucket width is 1.505 meters with a maximum capacity of 1 cubic meter. Special equipment includes air conditioning.

Crawler Excavators Beml BE220LC

Technical specs - BE220LC Beml

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.8 t
Transport length
10 m
Transport width
2.99 m
Transport height
3.06 m
Bucket capacity min.
0.44 m³
Bucket capacity max.
1.26 m³
Undercarriage
LC
Track width
610 mm
Max. Reach horizontal
9.44 m
Dredging depth
7.16 m
Tear-out force
125 kN
Bucket width
1.505 m
Engine manuf.
Beml
Engine type
BS6D105-1
Engine power
110 kW
Displacement
6494 l
Revolutions at max torque
2100 rpm
No. of cylinders
6
Cylinder bore x stroke
105 x 125 mm

More technical details, like: bucket capacity, boom, model series, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Beml BE220LC FAQ

When was the Beml BE220LC manufactured?

The Beml BE220LC was first produced in 2007.

How much does the Beml BE220LC weigh?

The Beml BE220LC weighs 22.8 tons.

What are the transport dimensions of the Beml BE220LC crawler excavator?

The Beml BE220LC has a transport length of 10 meters, a transport width of 2.99 meters, and a transport height of 3.06 meters.

What are the undercarriage specifications of the Beml BE220LC?

The Beml BE220LC has a long undercarriage and a track width of 610 mm.

What are the excavation performance specifications of the Beml BE220LC?

The Beml BE220LC has a dredging depth of 7.16 meters and a maximum horizontal reach of 9.44 meters.

What are the power ratings of the Beml BE220LC?

There are no power rating data available for the Beml BE220LC in the provided information.

What are the bucket specifications of the Beml BE220LC crawler excavator?

The Beml BE220LC has a bucket with a maximum capacity of 1.26 cubic meters and a width of 1.505 meters.
